Notes on coolant level - AH20.00-P-1142-01AK
| AH20.00-P-1142-01AK | Notes on coolant level | ||
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A |
ENGINE 780 in MODEL 169.090
ENGINE 266.9, 640.9 in MODEL 169.0
ENGINE 266.9, 640.9 in MODEL 169.3
ENGINE 266.9, 640.9 in MODEL 245.2

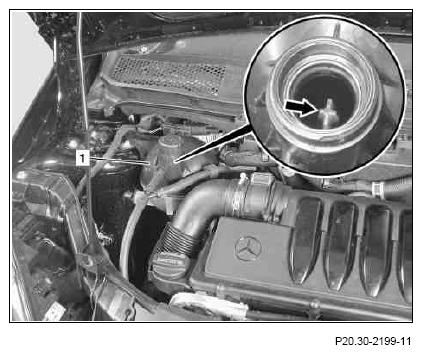

When the engine is cold, the coolant level must reach the line (arrow) in the coolant expansion reservoir (1).
When the engine is warm, the coolant level is approx. 1 cm above this line (arrow).
