Replace SAM fuses - AR54.15-P-2001MCC
MODEL 451.3/4

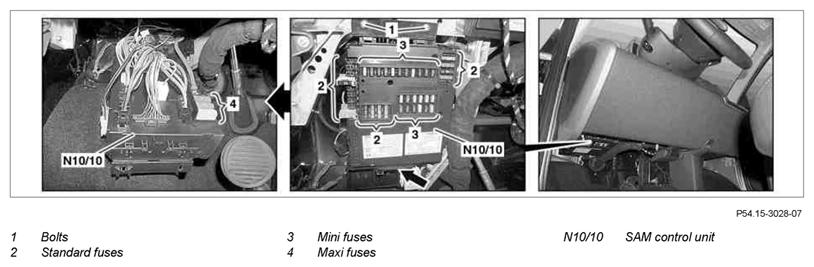

| 1 | Turn off ignition | ||
| 2 | Adjust left seat to the rear | ||
| Replace standard fuses (2) or mini fuses (3) | |||
| 3 | Pull out damaged standard fuse (2) or mini fuse (3) and replace | ||
| Replace maxi fuses (4) | |||
| 4 | Unclip SAM control unit (N10/10) in the rear area (arrow) and fold down forwards | ||
| 5 | Unscrew bolts (1) and carefully lower SAM control unit (N10/10) downwards until the maxi fuses (4) are accessible | ||
| 6 | Remove damaged maxi fuse (4) and replace | ||
| 7 | Position SAM control unit (N10/10) on crossmember under instrument panel and fasten in place using the bolts (1) | ||
| 8 | Clip in SAM control unit (N10/10) in correct area (arrow) |
