Overview of system components for energy management - GF54.10-P-9990ED

MODEL 451.390/490

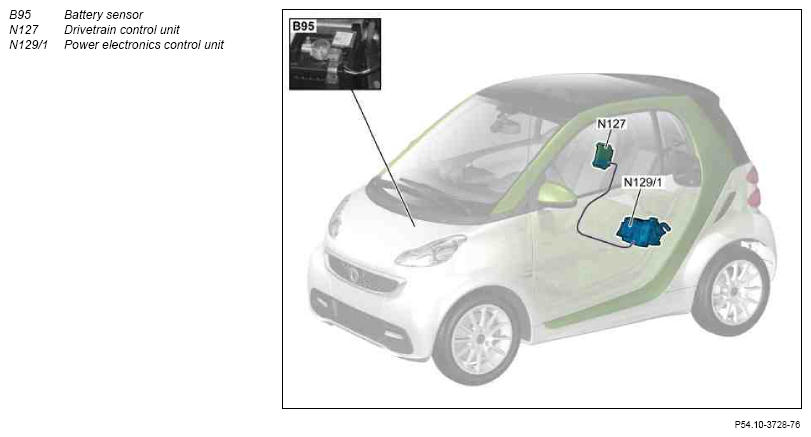

Fig 1: Overview Of Energy Management System Components

Courtesy of MERCEDES-BENZ USA

	Battery sensor, component description	B95	GF54.10-P-2100ED
	Drive control control unit, component description	N127	GF08.20-P-5001ED
	Power electronics control unit	N129/1	GF08.20-P-1001ED
	Table of contents for function description of energy management		GF54.10-P-0990ED
