Retrofit navigation system - AZ82.85-P-2000MCD

MODEL 451.3/4 as of 31.8.10

with CODE (516) RADIO WITH USB INTERFACE

except CODE (P02) car2go

Parts scope for smart Premium radio (A2/4)

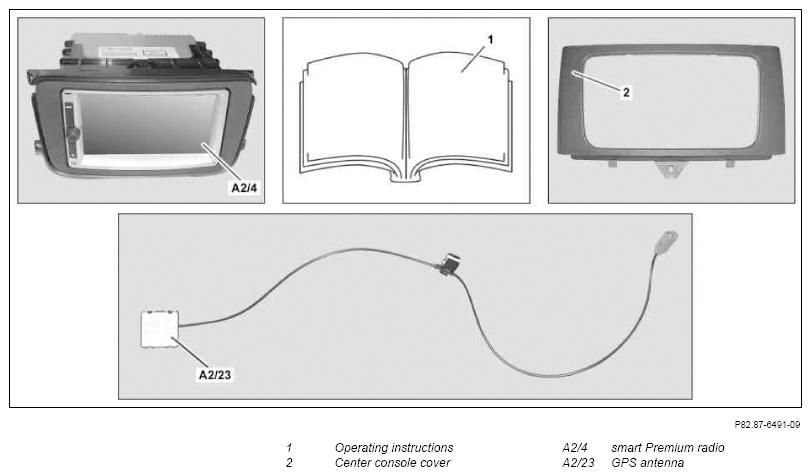

Fig 1: Identifying Navigation System Related Components - Parts Scope For Smart Premium Radio (A2/4)

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove smart Entry radio	* not for USA	AR82.60-P-7502MCC
		* for USA only	AR82.60-P-7502MCU
	Install
2	Install GPS antenna (A2/23)		AR82.85-P-0002MCC
3	Install smart Premium radio (A2/4)	* not for USA	AR82.60-P-7502MCC
		* for USA only	AR82.60-P-7502MCU
4	Install new center console cover (2)		AR68.20-P-2350MCF
5	Connect Star Diagnosis		AD00.00-P-2000-04MCC
6	Enter special equipment on the vehicle data card and the online vehicle data card	Add code (527) High-Line radio.
7	Disconnect Star Diagnosis		AD00.00-P-2000-04MCC
8	Enter security code of smart Premium radio (A2/4), change if necessary	The security code is set to "0000" by default at the factory. If the security code is to be changed, it must be documented in writing.
9	Check map data for navigation system, update if necessary		AR82.85-P-0100MCC
	Service Information: Update audio unit software	* not for USA	SI82.85-P-0003A
10	Adapt audio settings
	Notes on audio settings		AH82.60-P-0002-01MCC
11	Enter retrofitted equipment in Vehicle Documentation (VeDoc)	Attach note "smart Premium radio retrofitted as per AZ82.85-P-2000MCD " as well as serial number of smart Premium radio (A2/4) .
12	Document serial number of smart Premium radio (A2/4) in VeDoc	Enter serial number of smart Premium radio (A2/4) in theft-relevant data.
