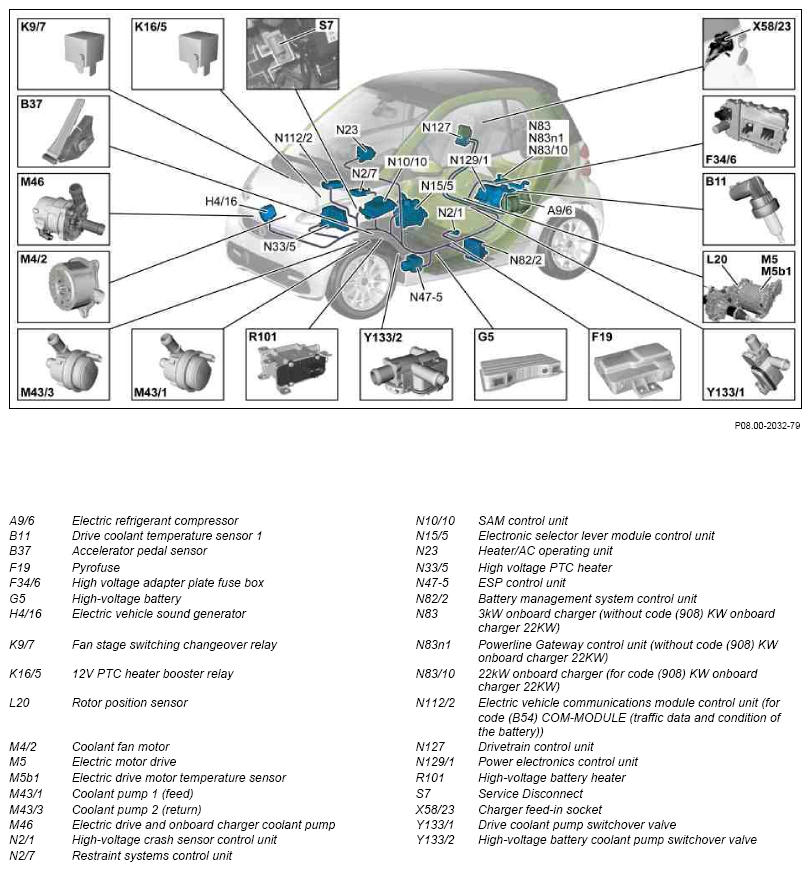

Overview of system components for electric drive - GF08.00-P-9991ED
ENGINE 780.993 in MODEL 451.390/392/490/492
| Component description for electric refrigerant compressor | A9/6 | GF83.55-P-2110ED | |
| Electric vehicle sound generator, component description | H4/16 | GF08.00-P-3004ED | |
| Crash sensor, high-voltage battery, component description | N2/1 | GF08.20-P-4111ED | |
| Restraint systems control unit, component description | ENGINE 780.993 in MODEL 451.390/490 without CODE 494 (US version) N2/7 |
GF91.60-P-4048MCC | |
| ENGINE 780.993 in MODEL 451.390/490 with CODE 494 (US version) N2/7 |
GF91.60-P-4048MCU | ||
| SAM control unit, component description | ENGINE 780.993 in MODEL 451.390/490 without CODE 494 (US version) N10/10 |
GF54.21-P-4157MCC | |
| ENGINE 780.993 in MODEL 451.390/490 with CODE 494 (US version) N10/10 |
GF54.21-P-4157MCU | ||
| Electronic selector lever module control unit, component description | ENGINE 780.993 in MODEL 451.390/490 with TRANSMISSION 700.111 N15/5 | GF26.19-P-1004ED | |
| Heater/air conditioning operating unit, component description | ENGINE 780.993 in MODEL 451.390/490 without CODE 494 (US version) N23 |
GF83.40-P-3001MCD | |
| ENGINE 780.993 in MODEL 451.390/490 with CODE 494 (US version) N23 |
GF83.40-P-3001MCU | ||
| High-voltage PTC heater, component description | N33/5 | GF83.70-P-4065ED | |
| Component description for ESP control unit | ENGINE 780.993 in MODEL 451.390/490 without CODE 494 (US version) N47-5 |
GF42.45-P-5118MCU | |
| ENGINE 780.993 in MODEL 451.390/490 with CODE 494 (US version) N47-5 |
GF42.45-P-5118MCC | ||
| Component description for battery management system control unit | N82/2 | GF54.10-P-3012ED | |
| High-voltage charger control unit, component description | N83, N83n1, N83/10 | GF08.20-P-2000ED | |
| Electric vehicle communications module control unit, component description | ENGINE 780.993 in MODEL 451.390/392/490/492 with CODE B54 (KOM module (traffic data and battery charge level)) N112/2 | GF08.20-P-3003ED | |
| Drive control (FR) control unit, component description | N127 | GF08.20-P-5001ED | |
| Component description for power electronics control unit | N129/1 | GF08.20-P-1001ED | |
| Component description for temperature sensor for the low-temperature circuit | B11 | GF54.10-P-3104ED | |
| Accelerator pedal sensor, component description | B37 | GF30.20-P-2010MCC | |
| Pyrotechnical separator, component description | F19 | GF91.60-P-4070ED | |
| High-voltage adapter plate fuse box, component description | F34/6 | GF08.20-P-1002ED | |
| Component description for high-voltage battery | G5 | GF54.10-P-3004ED | |
| Relay for fan stage switchover, component description | K9/7 | GF20.40-P-5011ED | |
| High-voltage battery heater relay, component description | K16/5 | GF54.10-P-3111ED | |
| Component description for electric motor, | L20, M5, M5b1 | GF08.10-P-1000ED | |
| Component description for the fan motor | M4/2 | GF20.20-P-1000ED | |
| High-voltage battery coolant pump, component description | M43/1, M43/3 | GF20.10-P-4002ED | |
| Electric drive and high-voltage charger coolant pump, component description | M46 | GF20.10-P-5001ED | |
| High-voltage battery heater, component description | R101 | GF20.00-P-1001ED | |
| Charger feed-in socket, component description | X58/23 | GF54.10-P-4217ED | |
| Switchover valve for electric motor and high-voltage charger, component description | Y133/1 | GF08.10-P-2004ED | |
| Switchover valve for high-voltage battery coolant pump, component description | Y133/2 | GF20.10-P-3204ED | |
| Table of contents, function description of electric drive | GF08.00-P-0991ED |
