Remove/install front module mount - AR62.30-P-1576MCC

MODEL 451.3/4

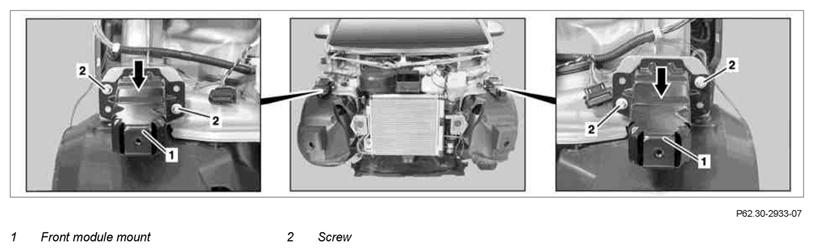

Fig 1: Identifying Front Module Mount Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove front module		AR62.30-P-1575MCC
2	Unscrew bolts (2) on left and right front module mount (1) and remove left and right front module mount (1).	: Observe corresponding installation marking (arrows) on front module mount (1).	*BA62.30-P-1009-02B
3	Install in the reverse order

FRONT END ASSEMBLY WITH FRONT REINFORCEMENT

Number	Designation		Model 451.3/4
BA62.30-P-1009-02B	Bolt on CMS front	Nm	25
