Remove/install rear-end door check strap - AR72.20-P-2570MCC

MODEL 451.3/4

Shown on right side of vehicle on model 451.4

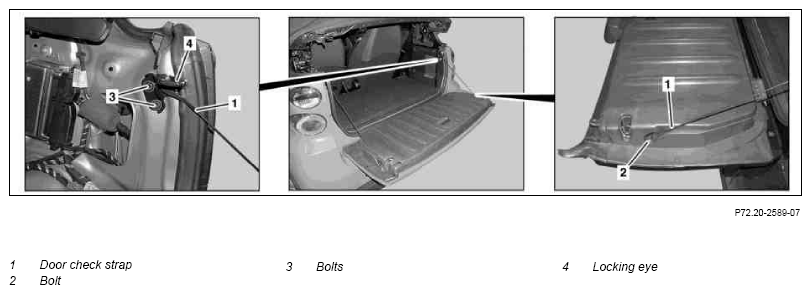

Fig 1: Identifying Rear-End Door Check Strap Remove/Install Components - Shown On Right Side Of Vehicle On Model 451.4

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove left and right side paneling in trunk		AR68.30-P-4800MCC
2	Unscrew bolts (3) and remove door check strap (1).	The locking eye (4) is firmly connected to the door check strap (1). Secure rear-end door against folding down when removing both door check straps (1). Align locking eye (4); the door paneling on the rear-end door should be flush with the contour of the CBS rear end.
			*BA72.20-P-1001-02F
3	Unscrew bolt (2) on left or right door check strap (1).	The bolt (2) remains on the door check strap (1).
			*BA72.20-P-1002-02F
4	Install in the reverse order

TAILGATE

Number	Designation		Model 451.3	Model 451.4
BA72.20-P-1001-02F	Bolt, lower rear-end door check strap to body	Nm	32	32
BA72.20-P-1002-02F	Bolt, check strap to lower rear-end door lock	Nm	20	20
