Remove/install front outside door opener cable - AR72.10-P-1410MCC
MODEL 451.3/4
| Remove/install | |||
| 1 | Remove left or right door paneling | AR72.18-P-1000MCC | |

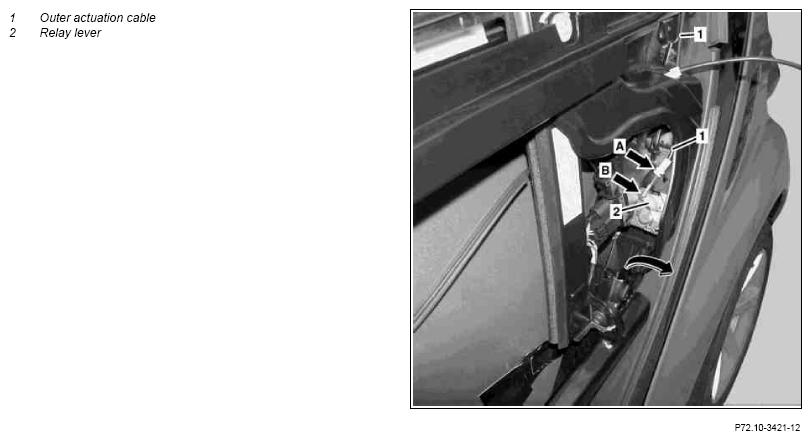

| 2 | Unclip outer actuation cable (1) from right door CL motor or left door CL motor (arrow A). | ||
| 3 | Press relay lever (2) in direction of arrow with suitable screwdriver, unhook outer actuation cable (1) from relay lever (2) with needle nose pliers (arrow B) and remove | ||
| 4 | Install in the reverse order |
