Remove/install front door power window switch - AR72.29-P-0100MCC
MODEL 451.3/4 with CODE (V43) Power window
| Remove/install | |||

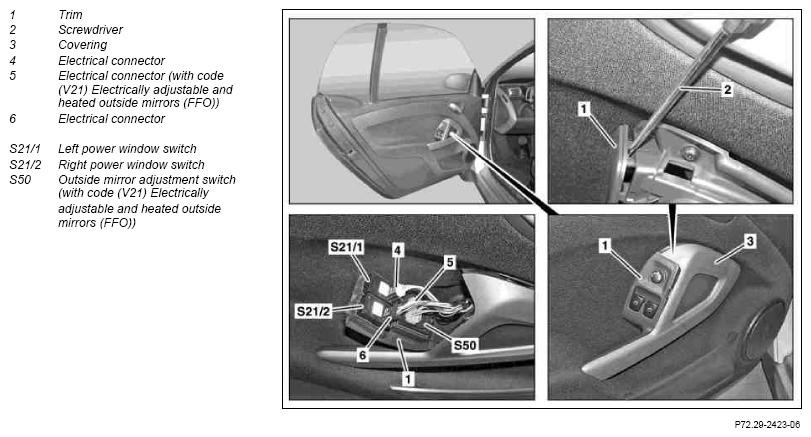

| 1 | Open door and loosen covering (3) in upper area with assembly wedge. | Figure | |
| 2 | Unclip paneling (1) in upper area with suitable screwdriver (2) and remove until the electrical connectors (4, 6) are accessible. | ||
| 3 | Disconnect electrical connector (5) from outside rearview mirror adjustment switch (S50) | On vehicles with code (V21) Electrically adjustable and heated outside mirrors (FFO) | |
| 4 | Disconnect electrical connector (4) from left power window switch (S21/1) and electrical connector (6) from right power window switch (S21/2) and remove paneling (1). | ||
| 5 | Unclip left power window switch (S21/1) and right power window switch (S21/2) from paneling (1) with suitable screwdriver and remove. | ||
| 6 | Install in the reverse order |
