Remove/install front door inner actuation - AR72.10-P-1400MCC

MODEL 451.3/4

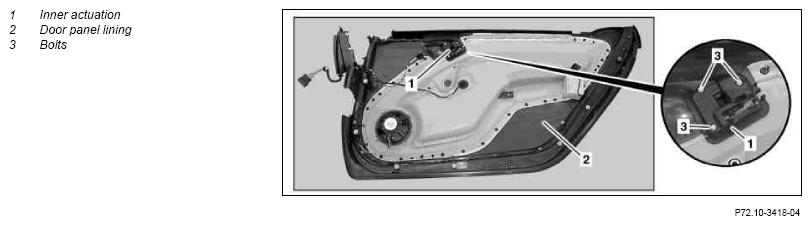

Fig 1: Identifying Front Door Inner Actuation Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove left or right door panel lining (2).		AR72.10-P-6575MCC
2	Unscrew bolts (3) from inner actuation (1).
3	Guide inner actuation (1) out of door panel lining (2) and remove.
4	Install in the reverse order
