Remove/install front door - AR72.10-P-0500MCC

MODEL 451.3/4

Shown on right side of vehicle on model 451.3

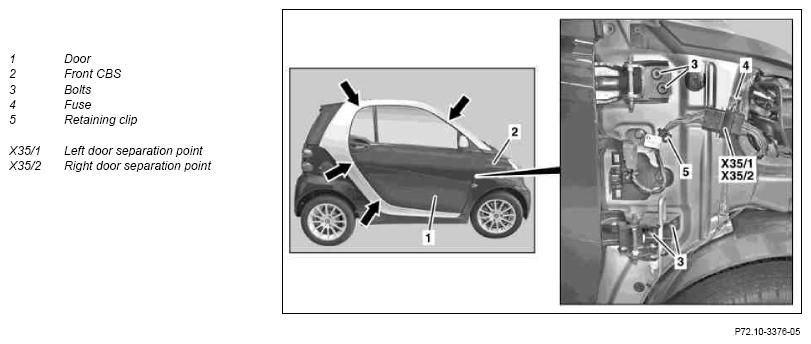

Fig 1: Identifying Front Door Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
1	Remove service flap
2	Remove left and right longitudinal member paneling.		AR88.80-P-6000MCC
3	Partially loosen front CBS (2) to remove left and right door (1).		AR88.00-P-1010-04MCC
4	Mark installation position of left and right door (1) in area of door hinge on A-pillar.
5	Mark installation position of left and right door (1) in marked areas (arrows) in relation to body with adhesive tape.
6	Release retainer (4) and disconnect left door separation point (X35/1) or right door separation point (X35/2)
7	Loosen retaining clip (5) on A-pillar.
8	Unscrew bolts (3) of upper and lower door hinge on A-pillar, open door (1) and remove with aid of helper.	Open door (1) a number of times against stop after tightening bolts (3). Then close door (1) and retighten bolts (3). Check door gaps (1); adjust if necessary: ↓
		Adjust front door	AR72.10-P-0550MCC
			*BA72.10-P-1002-01H
9	Install in the reverse order
