Retrofit outer decorative foil - AZ72.10-P-0003MCC

MODEL 451.3/4 except CODE (P02) car2go

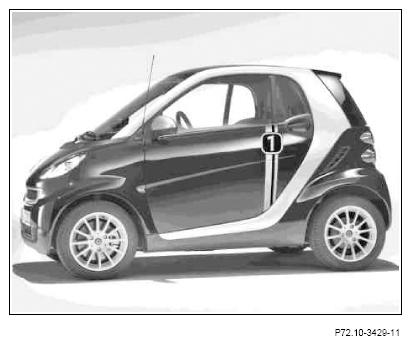

Fig 1: Identifying Outer Decorative Foil

Courtesy of MERCEDES-BENZ USA

		The bonding positions shown are recommended without obligation. Customer requests are, therefore, to be taken into consideration Bond decorative foil at room temperature and maintain temperature for 24 h. When solar radiation is high, bond decorative foil in shade only. If the decorative foil should be removed after a longer period of time, paint may be discolored
	Clean
1	Clean surfaces to be bonded	Surfaces must be free of dust, grease and silicon.
	Attachment
2	Attach adhesive tape as reference edge to align decorative foil later
3	Cut decorative foil to desired size.
4	Remove protective foil from decorative foil
5	Spray detergent on surfaces to be bonded and adhesive side of decorative foil
6	Install decorative foil on vehicle, press out air pockets and water with a plastic squeegee from center toward outside.
7	Cut decorative foil in area of joints and beads and work into contour; heat decorative foil with heat gun.	Ensure that hot air flow is not too hot. Otherwise the decorative foil can be damaged.
		Hot-air gun	Fig 2
8	Remove upper carrier foil of decorative foil
9	Remove air pockets in decorative foil	Punch air pockets at edge with pin and then smooth decorative foil with hand.

Fig 2: Identifying Hot-Air Gun (450 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
