Remove/install cover at selector lever - AR68.20-P-2309MCU

MODEL 451.3/4

Illustrated on model 451.4

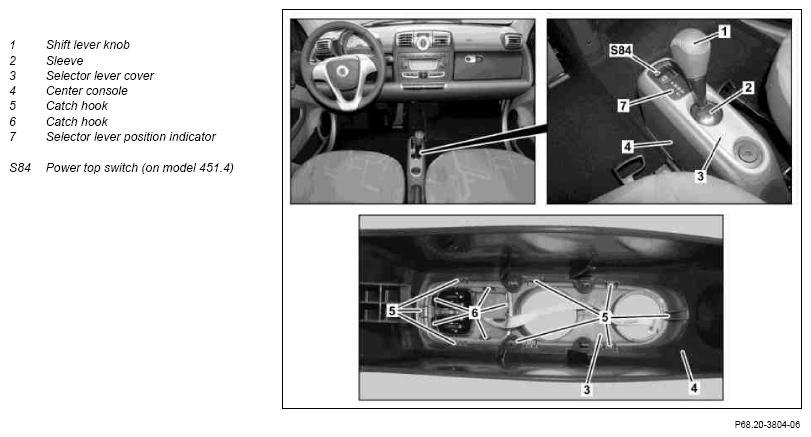

Fig 1: Identifying Selector Lever Cover Remove/Install Components

G10978785

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove shift lever knob (1)		AR26.60-P-6601MCU
2	Remove power top switch (S84)	On model 451.4	AR77.39-P-1000MCU
3	Unclip catch hook (6) from selector lever position display (7), remove selector lever position display (7) upward and lay down to side with electrical line connected	The catch hooks (6) are shown with the center console (4) removed, for better illustration.
4	Loosen catch hook (5) on selector lever cover (3)	The catch hooks (5) are shown with the center console (4) removed, for better illustration.
5	Lift selector lever cover (3), guide selector lever position display (7) through opening in selector lever cover (3) and remove selector lever cover (3)
6	Install in the reverse order
