Remove/install center console reinforcement - AR68.20-P-2340MCU
MODEL 451.3/4

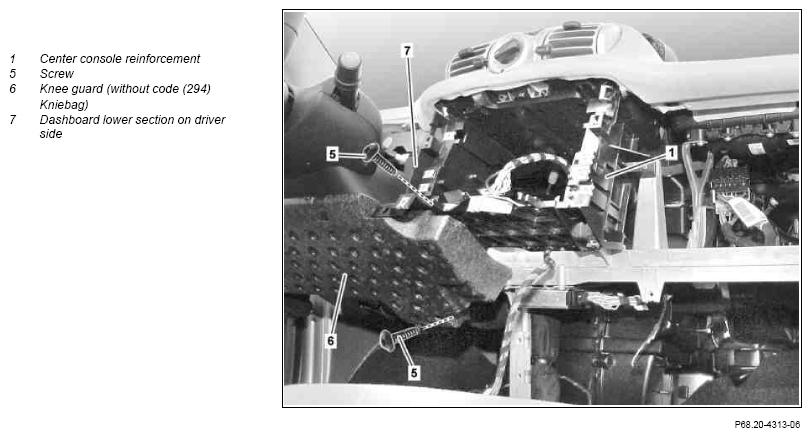

Shown as of 31.8.10 without code (P02) car2go

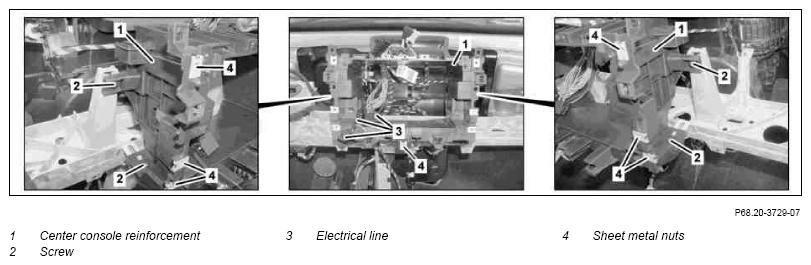

Fig 2: Identifying Center Console Reinforcement Remove/Install Components - Shown As Of 31.8.10 Without Code (P02)
| Remove/install | |||
| 1.1 | Remove dashboard bottom section on driver's side (7) | On vehicles up to 30.8.10 or with code (P02) car2go with instrument panel up to production date 30.8.10. | AR68.10-P-1501MCU |
| 1.2 | Remove bottom section of dashboard on front passenger side | On vehicles as of 31.8.10 without code (P02) car2go. | AR68.10-P-1502MCU |
| 2 | Remove knee guard (6) from driver side instrument panel lower section (7) | On vehicles without code (294) Kneebag | |
| 3 | Unscrew bolts (5) from driver side instrument panel lower section (7) | On vehicles as of 31.8.10 without code (P02) car2go. | |
| 4 | Unscrew bolts (2) from center console reinforcement (1) | ||
| 5 | Remove electrical lines (3) and remove center console reinforcement (1) | ||
| 6 | Remove sheet metal nuts (4) from center console reinforcement (1). | When replacing center console reinforcement (1). | |
| Install | |||
| 7 | Drill hole for key shaft in center console reinforcement (1) | When replacing center console reinforcement (1) on vehicles with code (P02) car2go with instrument panel up to production date 30.8.10. |
|
| 8 | Install sheet metal nuts (4) on center console reinforcement (1) | When replacing center console reinforcement (1). | |
| 9 | Route electrical lines (3) and install center console reinforcement (1) | ||
| 10 | Tighten bolts (2) on center console reinforcement (1) | ||
| 11 | Tighten bolts (5) on driver instrument panel lower section (7) | On vehicles as of 31.8.10 without code (P02) car2go. | |
| 12 | Install knee guard (6) on driver side instrument panel lower section (7) | On vehicles without code (294) Kneebag | |
| 13.1 | Install driver instrument panel lower section (7) | On vehicles up to 30.8.10 or with code (P02) car2go with instrument panel up to production date 30.8.10. | AR68.10-P-1501MCC |
| 13.2 | Install passenger side dashboard, bottom section | On vehicles as of 31.8.10 without code (P02) car2go. | AR68.10-P-1502MCC |
