Remove/install front spoiler - AR88.30-P-0505MCC

MODEL 451.3/4 up to 19.3.12

Shown on front CBS with code (V07) Front fog lamp (FFO)

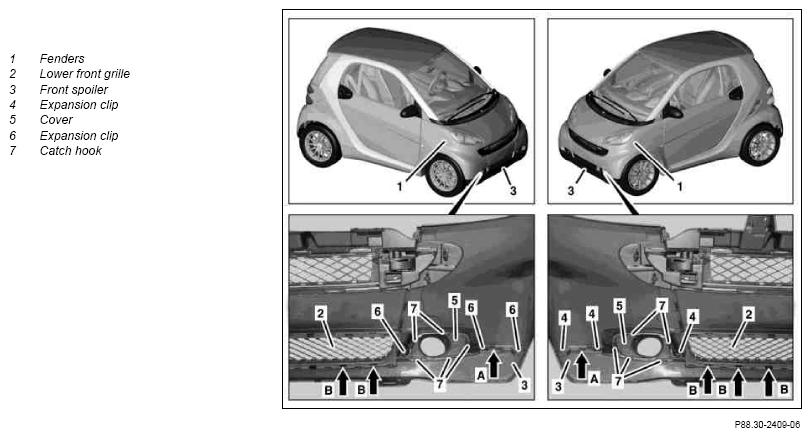

Fig 1: Identifying Front Spoiler Remove/Install Components - Shown On Front CBS With Code (V07)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Raise vehicle
2	Unclip catch hook (7) from covers (5) and remove covers (5)
3	Unclip front spoiler (3) from underfloor paneling
4	Turn wheel to right and remove expansion clip (4)
5	Turn wheel to left and remove expansion clip (6)
6	Unclip catch hook (arrows B) between lower front grille (2) and front spoiler (3)	Pull front grille (2) toward front spoiler (3) from rear with extraction hook and clip in.
		Assembly tool set	Fig 2
7	Unclip front spoiler (3) from catch hook (arrows A) from front fenders (1) and remove.	Do not damage catch hooks (A) when unclipping. Otherwise the front spoiler (3) must be replaced.
8	Install in the reverse order

Fig 2: Identifying Assembly Tool Set (450 589 07 99 00)

Courtesy of MERCEDES-BENZ USA
