Remove/install complete outside mirror - AR88.70-P-9000MCC
MODEL 451.3/4

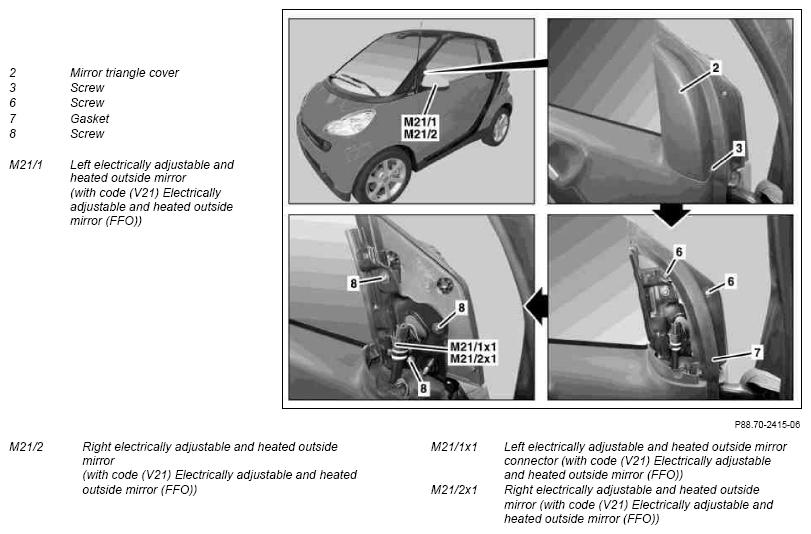

Shown with code (V21) Electrically adjustable and heated outside mirror (FFO)

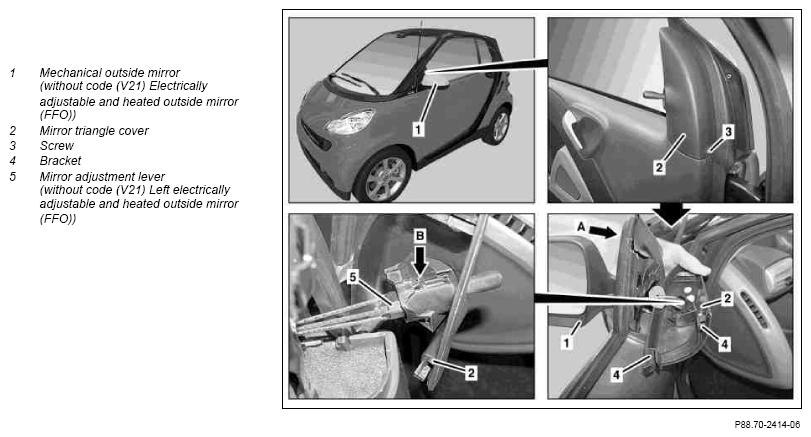

Shown without code (V21) Electrically adjustable and heated outside mirror (FFO)
| Remove/install | |||
| 1 | Lower crank window | ||
| 2 | Unscrew bolt (3) from mirror triangle cover (2). | ||
| 3.1 | Detach brackets (4) on mirror triangle cover (2) from door paneling and remove mirror triangle cover (2) | On vehicles with code (V21) Electrically adjustable and heated outside mirror (FFO) | |
| 3.2 | Detach brackets (4) on mirror triangle cover (2) from door paneling and lay mirror triangle cover (2) to side until catch (arrow B) is accessible. | On vehicles without code (V21) Electrically adjustable and heated outside mirror (FFO) | |
| 4 | Loosen catch (arrow B) on mirror adjustment lever (5) with suitable screwdriver and remove mirror triangle cover (2) toward front. | On vehicles without code (V21) Electrically adjustable and heated outside mirror (FFO) | |
| 5 | Unscrew bolts (6) from seal (7), lift seal (7) over manual outside mirror (1) or left electrically adjustable and heated outside mirror (M21/1) or right electrically adjustable and heated outside mirror (M21/2) in upper area (arrow A) and remove seal (7) upward. | ||
| 6 | Disconnect left electrically adjustable and heated outside mirror connector (M21/1x1) or right electrically adjustable and heated outside mirror connector (M21/2x1) | On vehicles with code (V21) Electrically adjustable and heated outside mirror (FFO) | |
| 7 | Unscrew bolts (8) and remove manual outside mirror (1) or left electrically adjustable and heated outside mirror (M21/1) or right electrically adjustable and heated outside mirror (M21/2). | ||
| 8 | Install in the reverse order | ||
| 9 | Check manual outside mirror (1) or left electrically adjustable and heated outside mirror (M21/1) or right electrically adjustable and heated outside mirror (M21/2) for proper function. |
