Retrofit chrome package - AZ88.00-P-0002MCC

MODEL 451.3/4 up to 19.3.12 except CODE (P02) car2go

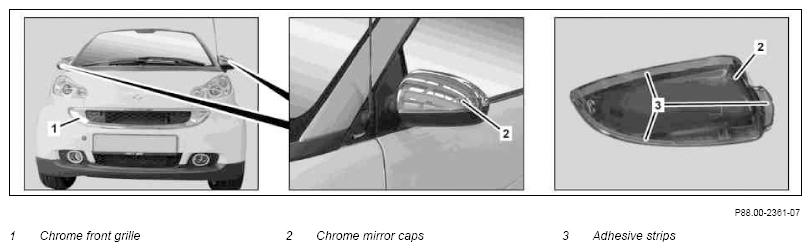

Fig 1: Identifying Chrome Front Grille, Chrome Mirror Caps And Adhesive Strips

Courtesy of MERCEDES-BENZ USA

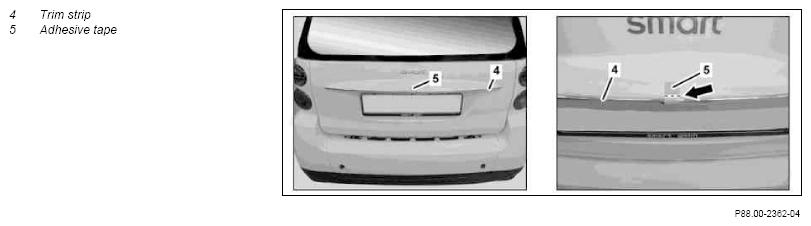

Fig 2: Identifying Trim Strip And Adhesive Tape

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove upper front grille and disassemble		AR88.40-P-4001MCC
	Install
2	Assemble chrome front grille (1) with carrier of upper front grille and install.	Do not reinstall upper front grille.	AR88.40-P-4001MCC
3	Clean contact surfaces on chrome mirror caps (2).
4	Remove protective foils from adhesive strips (3), position chrome mirror caps (2) and press on.
5	Clean contact surface on trim strip (4).
6	Position trim strip (4) on rear-end door paneling as shown, center and mark installation position using suitable adhesive tape (5).
7	Carefully cut adhesive tape (5) in marked area (arrow) and remove trim strip (4).	Carefully cut adhesive tape (5). Otherwise the rear-end door paneling below can be damaged.
8	Remove protective foil on adhesive strip from trim strip (4), center trim strip (4) according to the two halves of adhesive strip (5) and press on.
9	Enter retrofitted equipment in Vehicle Documentation (VeDoc)	Attach note "Chrome package retrofitted according to AZ88.00-P-0002MCC " to field organization texts .
