Replace tank support - AR61.10-P-5708MCD

MODEL 451.3/4 (except 451.39/49)

Tank console, left

Shown on model 451.3

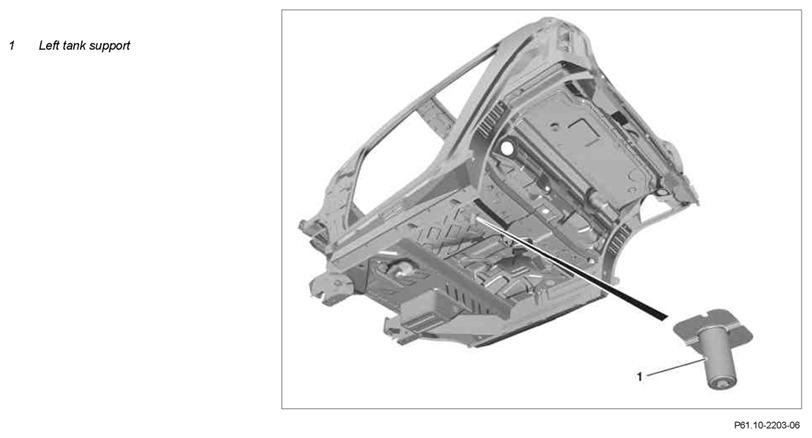

Fig 1: Identifying Left Tank Support - Shown On Model 451.3

Courtesy of MERCEDES-BENZ USA

	Removing
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	General information on riveting		AH60.00-P-0003-01MCC
	Notes on replacing body parts		AH60.00-P-0027-01FF
	General information on body repair		AH60.00-P-0001-01FF
		Generally conventional tools are required for body work, additional tools required are listed above. Blind rivet tool
		The repair method using riveting described here can be replaced by plug welding if required. Adapt preparatory work accordingly.
1	Remove detachable parts in the repair area
2	Cover all detachable parts remaining in vehicle (area to be repaired)	Use fire-resistant tarp. Otherwise flying sparks can cause damage.
3	Remove left tank support (1)		AR61.10-P-5708-01MCD
	Install
4	Install left tank support (1)		AR61.10-P-5708-04MCD
		Blind rivet	*BR00.45-Z-1001-13A
5	Clean sheet metal flange with wire brush and clean areas to repaired
6	Prime repair area using primer filler
7	Supply standard seam seals with body sealant		AR97.10-P-4000MCC
		Sealant, white	*BR00.45-Z-1003-01A
8	Supplement standard underbody protection with permanent underbody sealant	Underfloor protection	*BR00.45-Z-1001-05A
9	Paint repair area adjacent surfaces
	Notes on paintwork repairs		AH98.00-P-9408-02MCC
10	Apply additional cavity preservation		AR97.20-P-1500FF
		Teroson protective wax	*BR00.45-Z-1008-05A
11	Reinstall all detachable parts removed
