Replace tank support - AR61.10-P-5708MCC

MODEL 451.3/4 (except 451.39/49)

Tank console, right

Shown on model 451.3

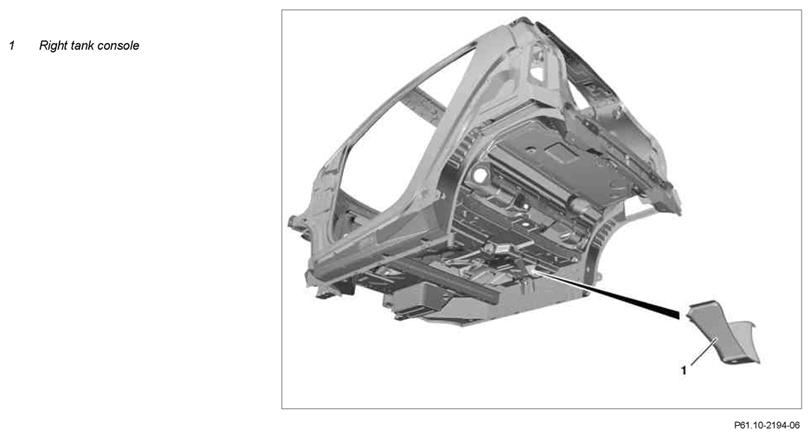

Fig 1: Identifying Right Tank Console - Shown On Model 451.3

Courtesy of MERCEDES-BENZ USA

	Removing
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on performing repair, body work and welding on vehicles with airbags and ETR units		AH91.00-P-0002-01SM
	Pretreatment of bonding surfaces		AH60.00-P-0008-01MCC
	General information on riveting		AH60.00-P-0003-01MCC
	Notes on replacing body parts		AH60.00-P-0027-01FF
	General information on body repair		AH60.00-P-0001-01FF
		Generally conventional tools are required for body work, additional tools required are listed above. Blind rivet tool
		The repair method using riveting described here can be replaced by plug welding if required. Adapt preparatory work accordingly.
1	Remove detachable parts in the repair area
2	Cover all detachable parts remaining in vehicle (area to be repaired)	Use fire-resistant tarp. Otherwise flying sparks can cause damage.
3	Remove right tank support (1)		AR61.10-P-5708-01MCC
4	Prepare connecting points on right tank support (1) on body		AR61.10-P-5708-02MCC
5	Prepare right tank support (1) for installation		AR61.10-P-5708-03MCC
	Install
6	Install right tank console (1)	The repair method using bonding described here is not required for reasons of strength and can be eliminated. To ensure corrosion protection, it is necessary to apply a seam sealant.	AR61.10-P-5708-04MCC
		2-component adhesive	*BR00.45-Z-1092-02A
		Blind rivet	*BR00.45-Z-1001-13A
7	Clean welds and sheet metal flange with wire brush and clean areas to be repaired
8	Prime repair area using primer filler
9	Supply standard seam seals with body sealant		AR97.10-P-4000MCC
		Sealant, white	*BR00.45-Z-1003-01A
10	Supplement standard underbody protection with permanent underbody sealant	Underfloor protection	*BR00.45-Z-1001-05A
11	Paint repair area adjacent surfaces
	Notes on paintwork repairs		AH98.00-P-9408-02MCC
12	Apply additional cavity preservation		AR97.20-P-1500FF
		Teroson protective wax	*BR00.45-Z-1008-05A
13	Reinstall all detachable parts removed
