Remove/install diagonal strut - AR61.10-P-5138MCU
| Remove/install | |||
1 |
Risk of death
caused by vehicle slipping or toppling off of the lifting platform. Raise vehicle using the vehicle lift and remove underfloor paneling |
Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. Cordless drill/driver, cordless drill |
AS00.00-Z-0010-01A |

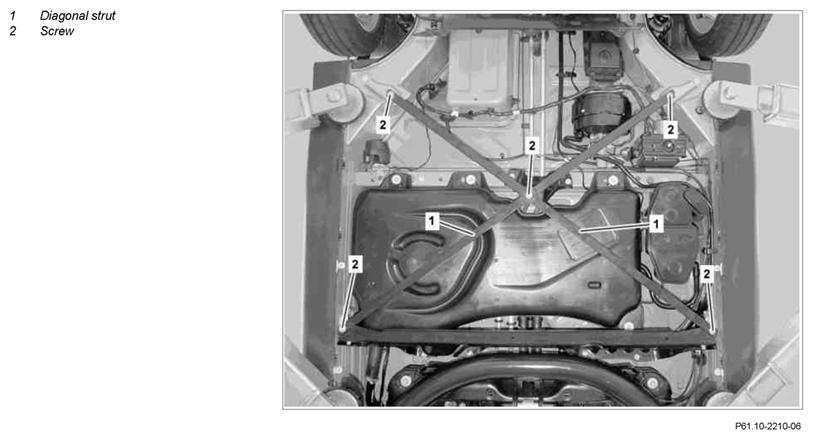

| 2 | Unscrew bolts (2) and remove diagonal struts (1) | *BA61.25-P-1002-01B | |
| 3 | Install in the reverse order |
UNDERBODY FRAME
| Number | Designation | Model 451.4 except 451.490/491 | |
|---|---|---|---|
| BA61.25-P-1002-01B | Bolt, diagonal strut to underbody | Nm | 65 |
