Remove/install console for front axle support - AR61.25-P-6613MEV

MODEL 451.391/491

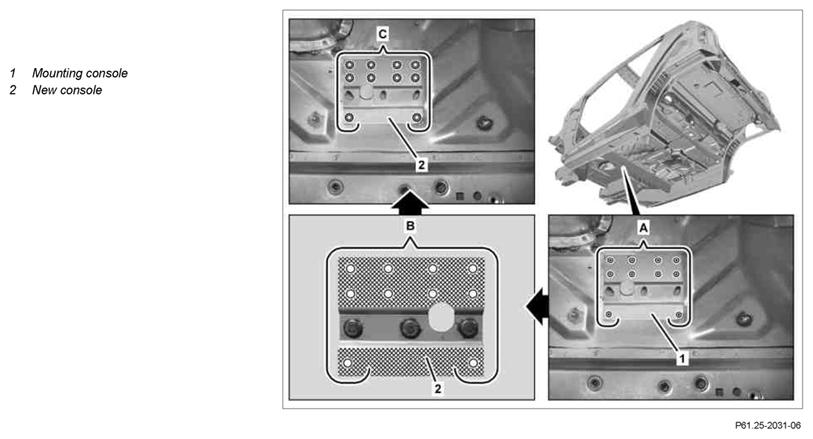

Fig 1: Identifying Console For Front Axle Support Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of explosion  caused by paint vapors igniting. Risk of poisoning  caused by inhaling paint vapors.	No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and skin cream. Ensure that the area is well ventilated.	AS98.00-Z-0002-01A
	The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases	Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly flammable materials from the hazard area. Use air extraction system.	AS00.00-Z-0007-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on performing repair, body work and welding on vehicles with airbags and RTE units		AH91.00-P-0002-01SM
	Measures for preventing damage to vehicles or components when performing electric welding work		AH00.00-P-0005-01FF
	General information on body repair		AH60.00-P-0001-01FF
	Notes on replacing body parts		AH60.00-P-0027-01FF
	Remove
1	Remove detachable parts in the repair area	The generally required conventional tools are required for body work.
2	Cover all detachable parts remaining in vehicle (area to be repaired)	Use tarpaulin (fire-resistant). Otherwise they can be damaged from flying sparks.
3	Expose spot welds on console (1) and cut out (area A)
4	Remove damaged console (1)
5	Level separated spot welds and grind mating surfaces down to bare metal
6	Drill holes for plug welding on new console (2) (areas B)
7	Grind connection surface on console (2) down to bare metal in crosshatched area
8	Remove grinding and drill shavings with wet/dry vacuum cleaner
	Install
9	Fit new console (2) together with support and tack weld	When fitting, observe cutout as positioning aid.
10	Weld in new console (2) (area C)
11	Clean welds with wire brush
12	Prime repair area using primer filler
13	Supply standard seam seals with body sealant		AR97.10-P-4000MCC
		White sealing compound, 310 ml, DBL 6069.20	*BR00.45-Z-1003-01A
14	Paint repair area adjacent surfaces
	Notes on paintwork repairs		AH98.00-P-9408-02MCC
15	Apply additional cavity preservation		AR97.20-P-1500FF
		Teroson protective wax art. no: 122.73Q	*BR00.45-Z-1008-05A
16	Remove tarps in repair area
17	Reinstall all detachable parts removed

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-01A	White sealing compound, 310 ml, DBL 6069.20	A 001 989 63 20
BR00.45-Z-1008-05A	Teroson protective wax, art. no: 122.73Q	Henkel Loctite
