Remove/install fuel filler flap CL element - AR80.20-P-2300MCC

MODEL 451.3/4

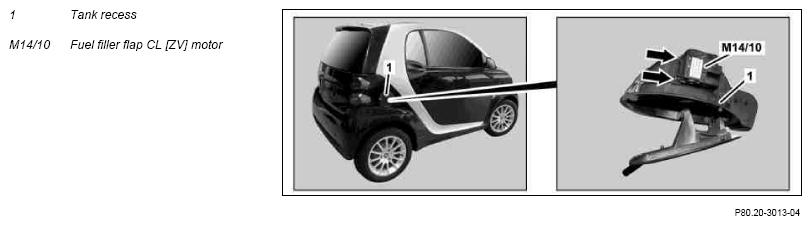

Fig 1: Identifying Fuel Filler Flap CL Element Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove tank recess		AR88.60-P-2000MCC
2	Unclip fuel filler flap CL [ZV] motor (M14/10) from tank recess (1) (arrows) and remove.
3	Install in the reverse order
4	Check fuel filler flap CL [ZV] motor (M14/10) for proper function
