Remove/install ATA alarm siren - AR80.50-P-9840MCC
MODEL 451.3/4 with CODE (V01) Antitheft alarm system (FFO)
| Remove/install | |||
| 1 | Deactivate antitheft alarm system (ATA) with transmitter key | ||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 2 | Raise vehicle using the vehicle lift and remove underfloor paneling | Cordless drill/driver, cordless drill |
|

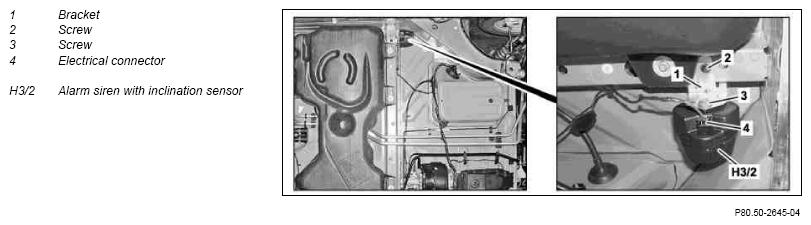

| 3 | Disconnect electrical connector (4) from alarm siren with inclination sensor (H3/2) | ||
| 4 | Remove bolt (2) and remove alarm siren with inclination sensor (H3/2) together with bracket (1) | ||
| 5 | Remove bolt (3) and remove bracket (1) from alarm siren with inclination sensor (H3/2) | When replacing alarm siren with inclination sensor (H3/2). | |
| 6 | Install in the reverse order | ||
| 7 | Activate ATA with transmitter key and check function by triggering alarm |
