Check setting of high beam - AP82.10-P-8260-02EC

MODEL 207 with halogen headlamps

1. Check setting of high beam headlamps.

   The center of the light beam must be positioned on the central mark (1) in the headlamp aimer (01).

   In the event of a deviation check the correct seat of the bulb in the headlamp.

   Do not  make any correction to the adjustment screws for the headlamp height adjustment (H) and the adjustment screws for the headlamp side adjustment (S), as this would adjust the previously set low beam.

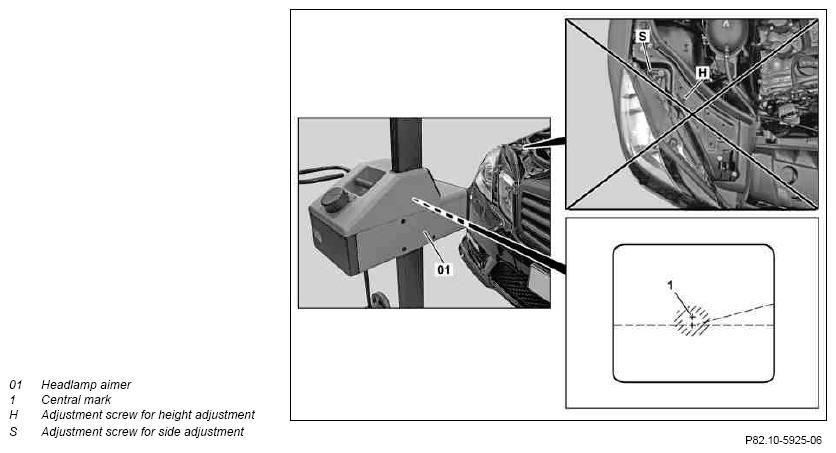

   Fig 1: Caution For Adjusting Headlamp Aimer (Model 207)

   Courtesy of MERCEDES-BENZ USA
