Install Brabus pedal cover - AN29.10-P-0001MCC

MODEL 451.3/4 (except 451.391/491)

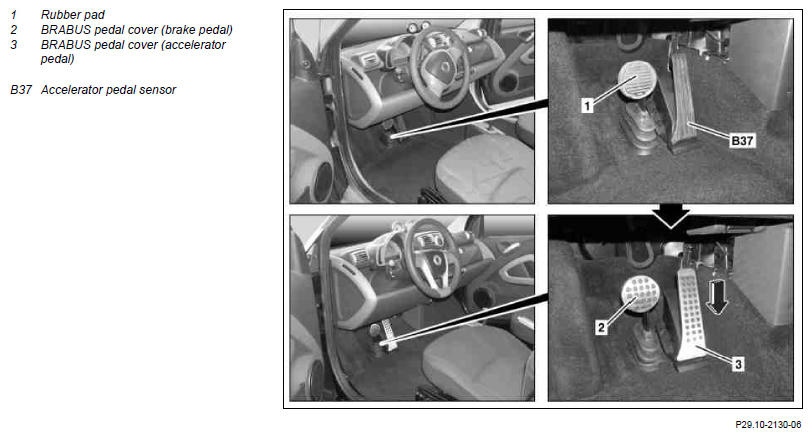

Fig 1: Identifying Brabus Pedal Cover Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Removing
1	Remove rubber mounting (1) on brake pedal head of brake pedal
	Install
2	Slide BRABUS pedal cover (3) from above onto the accelerator pedal sensor (B37)	Do not use any antifriction agent as the frictional connection between the BRABUS pedal cover (3) and the accelerator pedal sensor (B37) is impaired as a result.
3	Position BRABUS pedal cover (2) on the brake pedal head of the brake pedal and put on	Do not use any antifriction agent as the frictional connection between the BRABUS pedal cover (2) and the accelerator pedal sensor is impaired as a result.
4	Add special equipment to the vehicle data card and to the online vehicle data card
