Remove/install tank recess - AR88.60-P-2000MCC
MODEL 451.3/4
| Remove/install | |||
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel and risk of injury to eyes and skin caused by contact with fuel | No fire, sparks, open flames or smoking. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| 1 | Mask CBS rear in rear area of tank recess (1) with suitable adhesive tape (6) | ||
| 2 | Open fuel filler flap (3) | ||
| 3 | Unscrew lock (2) from tank filler neck | Not on model 451.39/49 | |
| 4 | Loosen lock (2) on hinge lever (9) (arrow A) and lay down to side | Not on model 451.39/49 | |

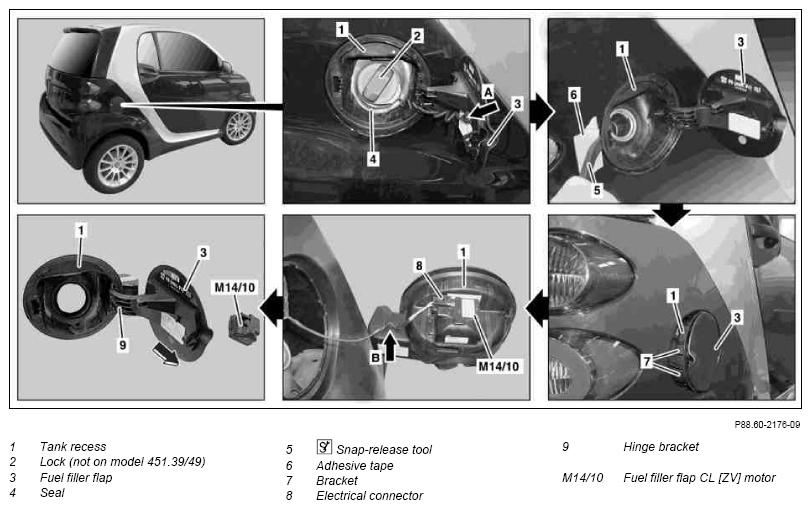

| 5 | Unclip bracket (7) from tank recess (1) with clip remover (5) | Figure | |
| 6 | Close fuel filler flap (3) and remove tank recess (1) until electrical connector (8) on fuel filler flap CL motor (M14/10) is accessible | ||
| 7 | Disconnect electrical connector (8) from fuel filler flap CL motor (M14/10) and remove tank recess (1) | ||
| 8 | Unclip fuel filler flap CL motor (M14/10) from tank recess (1) and remove | When replacing tank recess (1). | |
| 9 | Remove fuel filler flap (3) from hinge lever (9) in direction of arrow | When replacing tank recess (1). | |
| 10 | Remove hinge lever (9) from tank recess (1) and remove | When replacing tank recess (1). | |
| 11 | Install in the reverse order |
