Remove/install fog lamp - AR82.10-P-5103MCU
MODEL 451.3/4
with CODE V07 (Front fog lamps (FFO))
| Remove/install | |||

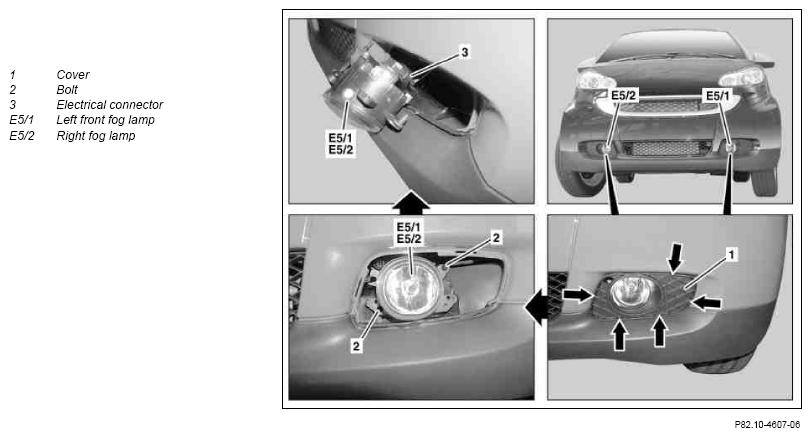

| 1 | Unclip cover (1) of left fog lamp (E5/1) or right fog lamp (E5/2) in marked areas (arrows) and remove | ||
| 2 | Remove screws/bolts (2) from left fog lamp (E5/1) or right fog lamp (E5/2) | ||
| 3 | Remove left fog lamp (E5/1) or right fog lamp (E5/2) towards front until the electrical connector (3) is accessible | Carefully route left fog lamp (E5/1) or right fog lamp (E5/2) out of the CBS front section. Otherwise, the CBS front section may be damaged by scratches. |
|
| 4 | Disconnect electrical connector (3) from left fog lamp (E5/1) or right fog lamp (E5/2) and remove left fog lamp (E5/1) or right fog lamp (E5/2) | ||
| 5 | Install in the reverse order | ||
| 6 | Check adjustment of left fog lamp (E5/1) or right fog lamp (E5/2) and correct | ||
| AP82.10-P-8260MCC |
