Disconnecting and connecting electrical cables from battery - AR54.18-P-0002MCC

MODEL 451.3/4

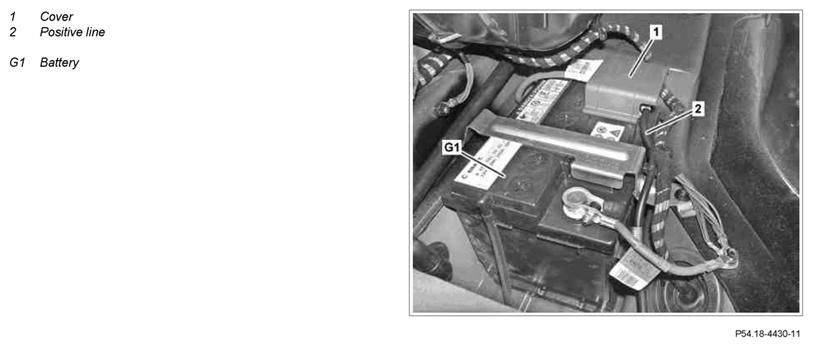

Fig 1: Identifying Cover, Positive Line And Battery

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Disconnect battery ground line		AR54.10-P-0003MCC
2	Take off cover (1)
3	Disconnect positive line (2) from battery (G1)
4	Install in the reverse order
