Remove/install inertia switch - AR54.10-P-0050MEV

MODEL 451.391/491 with ENGINE 780.009

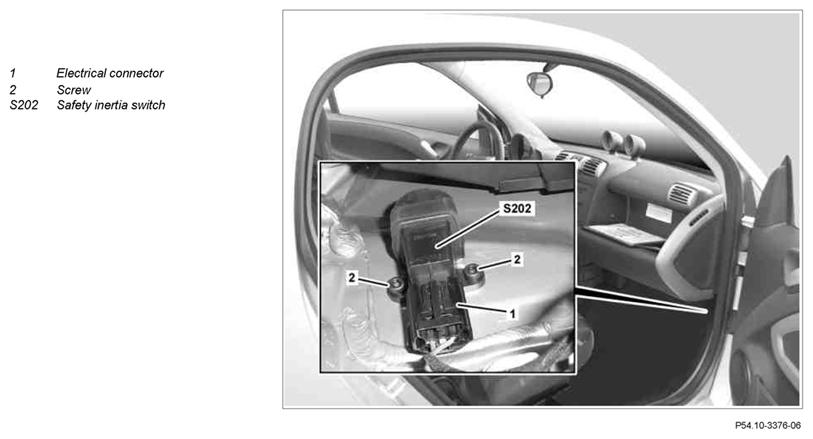

Fig 1: Identifying Inertia Switch Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Disconnect electrical connector (1) from safety inertia switch (S202)
2	Unscrew bolts (2) and remove safety inertia switch (S202)
3	Install in the reverse order
