Retrofit iPod interface - AZ82.60-P-0014MCC
MODEL 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10
with CODE 516 (RADIO WITH USB INTERFACE)
except CODE P02 (car2go)
Telephone system/Bluetooth hands-free system with display retrofitted
MODEL 451.3/4 up to 8/30/10
with CODE C50 (smart radio ten)
except CODE P02 (car2go)
Telephone system/Bluetooth hands-free system with display retrofitted
MODEL 451.3/4 up to 8/30/10
with CODE C57 (smart radio nine)
except code P02 (car2go)
Telephone system/Bluetooth hands-free system with display retrofitted

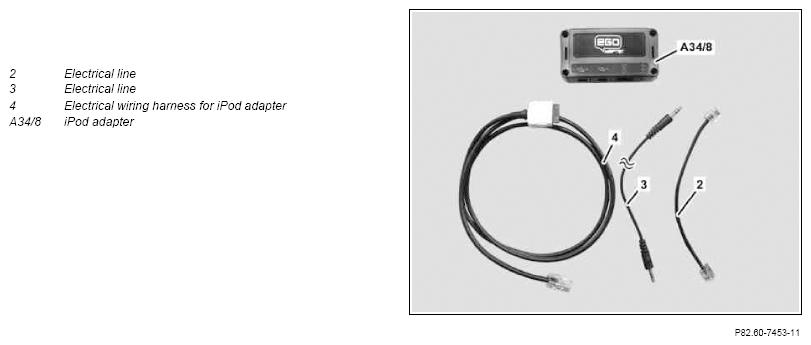

Package contents of iPod kit

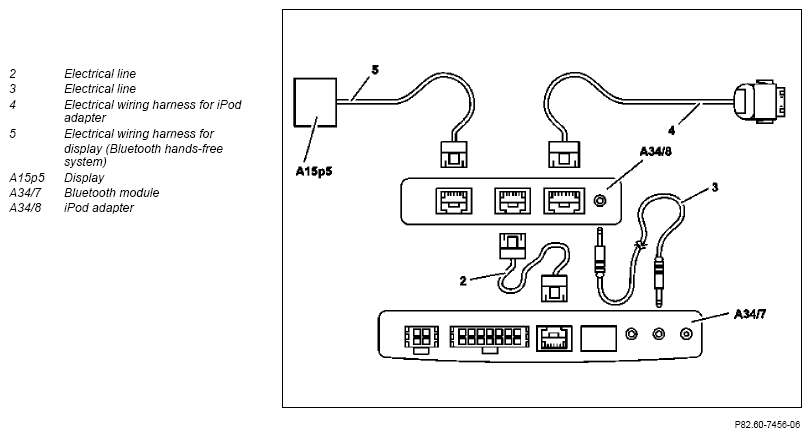

iPod kit connection diagram
| Check | |||
| 1 | Check whether Bluetooth hands-free system is installed | ||
| Install | |||
| 2 | Move front passenger seat toward rear | ||
| 3 | Retrofit electrical wiring harness for iPod adapter (4), iPod adapter (A34/8) and electrical lines (2, 3) | AZ82.60-P-0001-01MCC | |
| 4 | Reset front passenger seat to starting position | ||
| 5 | Perform function test |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| KG 98 | Installation kit/iPod | 1 |
