Application of nano paint sealer - AP98.00-P-9830A

MODEL all

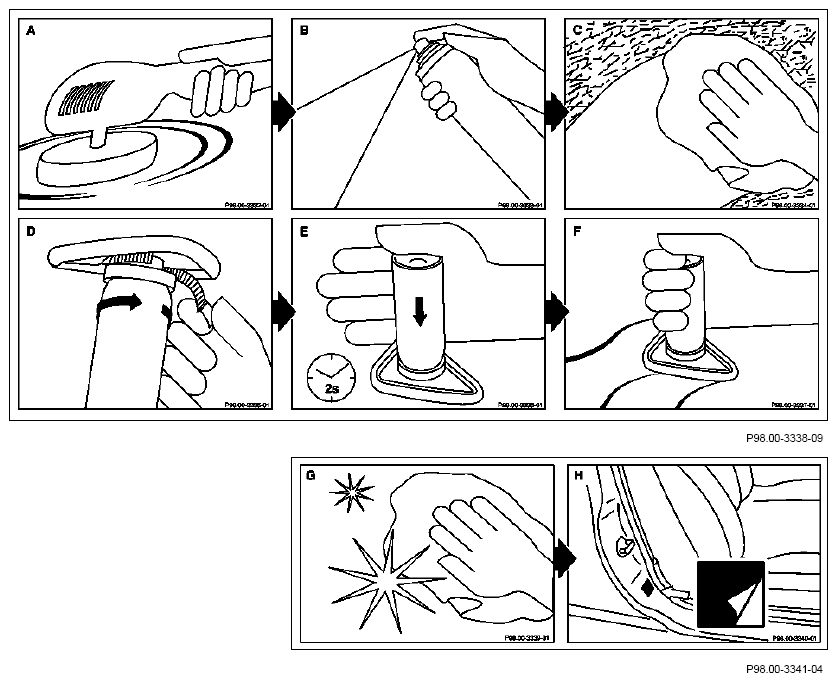

Fig 1: Applying Nano Paint Sealer

Courtesy of MERCEDES-BENZ USA

	Application
1	Wash the vehicle	All contamination must be removed from the paint surface.
		Car Wash	*BR00.45-Z-1002-04A
2	Polish paint surface to bright luster (Picture A).	Paint surface must be free of ghostings, scratches and streaks.
		Polish	*BR00.45-Z-1015-04A
		MB Nano polish	*BR00.45-Z-1062-04A
3	Spray paint surface with Paint-Prepare and wipe off carefully with microfiber cloth (Picture B, C).	If ghostings and streaks are still visible, polish the paint surface to bright luster again.
		Microfiber cloth, micron-grained	*BR00.45-Z-1061-04A
		Nano paint sealer set	*BR00.45-Z-1063-04A
4	Pull retaining ring off of nano paint sealer can (Picture D).	Ensure that only perfectly prepared paint surfaces are sealed, otherwise the seal on the paint surface cannot be guaranteed. Here it is necessary to ensure that the subsurface is absolutely dry and grease-free.
		Nano paint sealer set	*BR00.45-Z-1063-04A
5	Press nano paint sealer can with applicator vertically downward into cap with force (Picture E).
6	Remove cap.
7	Apply nano paint sealer to paint surface uniformly and thin (Picture F).	Nano paint sealer is not suitable for glass surfaces, the interior compartment, or vehicle surfaces covered with foil or with a matt paint finish. When applying nano paint sealer, ensure that no points in the paint surface are omitted, that only small areas with a maximum size of one-half square meter are processed simultaneously and that each of the small areas are allowed to flash off for 15 to 30 seconds.
8	Polish out streaks and stripes with a microfiber cloth and remove excess nano paint sealer (Picture G).	Any streaks, stripes or veiling still present can be removed within one hour by applying a thin coat of nano paint sealer and cleaning with a microfiber cloth. Allow the sealed surfaces to cure for at least one hour. During this time ensure that the vehicle is parked in a dry place and is not touched.
		Microfiber cloth, micron-grained	*BR00.45-Z-1061-04A
9	Enter date sealer was applied on sticker in nano paint sealer set and attach sticker to B-pillar (Picture H)	Attach sticker next to model plate with paint code on B-pillar of sealed vehicle. After applying nano paint sealer, the sealed vehicle should not be washed for the first three days. Please note that highly concentrated alkaline cleaning agents (e.g. manual preliminary rinsing at car washes) and polishing processes remove the nano paint sealer from the vehicle.
		Nano paint sealer set	*BR00.45-Z-1063-04A
10	Fill out enclosed certificate and give to customer.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1002-04A	Car Wash	A 001 986 41 71
BR00.45-Z-1015-04A	Fine polishing paste, polish 1 l, DB supply specification 7543.00	A 000 986 43 74
BR00.45-Z-1061-04A	Microfiber cloth, micron-grained	A 000 986 09 62
BR00.45-Z-1062-04A	MB Nano polish	A 000 986 87 74
BR00.45-Z-1063-04A	Nano paint sealer set	A 000 986 01 72
