Remove/install Global System for Mobile Communications (GSM) antenna - AR82.85-P-0010MCG

MODEL 451.3 with CODE (P02) car2go

with instrument panel up to production date 30.8.10

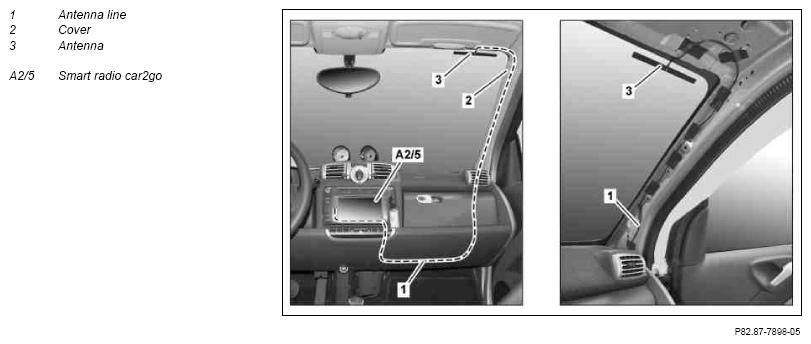

Fig 1: Identifying Global System For Mobile Communications Antenna Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove smart radio car2go (A2/5)	* not for USA	AR82.60-P-7502MCC
		* for USA only	AR82.60-P-7502MCU
2	Remove paneling (2) from A-pillar	* not for USA	AR68.30-P-4050MCC
		* for USA only	AR68.30-P-4050MCU
3	Expose antenna line (1) and pull out upwards between A-pillar and instrument panel
4	Release antenna (3) from windshield with assembly wedge and remove	The antenna (3) is destroyed during the process. Clean windshield. Position antenna (3) as shown and glue in place.
		Assembly wedge	Fig 2
		Primer/bonding agent	*BR00.45-Z-1138-02A
5	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Repair materials
