Remove/install driver seat cushion - AR91.10-P-1070MCU

MODEL 451.3/4

Shown on code (S17) Seat heaters (FFO)

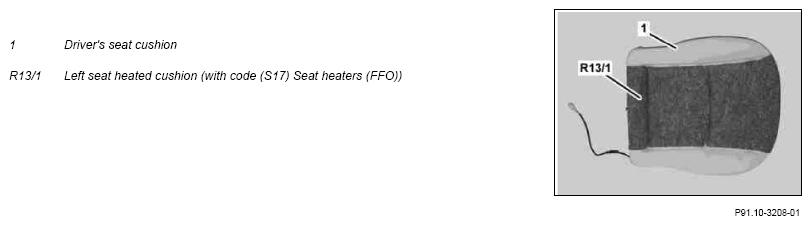

Fig 1: Identifying Driver Seat Cushion Remove/Install Components - Shown On Code (S17) Seat Heaters (FFO)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove seat cushion cover from driver seat cushion (1)	If the driver seat cushion (1) is replaced in vehicles with code (S17) Seat heater (FFO), a new left heated seat cushion (R13/1) must be installed. See: ↓	AR91.10-P-3312MCU
		Remove/install heated cushion on front seat cushion	AR91.30-P-0005MCU
2	Install in the reverse order
