Remove/install interior paneling on roll bar - AR68.30-P-1380MCU

MODEL 451.4

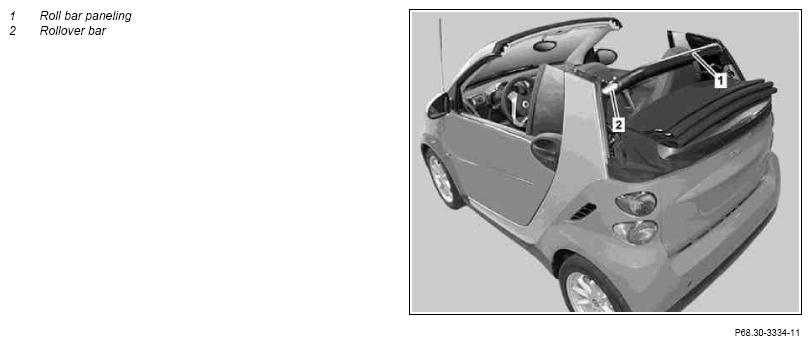

Fig 1: Identifying Interior Paneling On Roll Bar Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Completely open soft top
2	Detach roll bar paneling (1) with snap-release tool and remove	The catch hooks are damaged when removing the roll bar paneling (1), for this reason always replace roll bar paneling (1).	Fig 2
3	Install in the reverse order

Fig 2: Identifying Snap-Release Tool (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
