Remove/install inside rearview mirror - AR68.40-P-0001MCU

MODEL 451.3/4

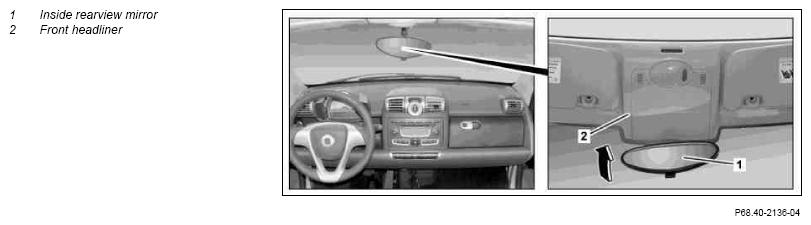

Fig 1: Identifying Inside Rearview Mirror Remove/Install Components
G10978815Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Carefully slide inside rearview mirror (1) upward in direction of arrow and remove NOTES Ensure that the front headliner (2) is not scratched when folding inside rearview mirror (1) in/out; otherwise, it must be replaced.
2 Install in the reverse order
