Remove/install antenna - AR82.70-P-8951MCC

MODEL 451.3/4

with CODE (C08) Radio preinstallation incl. rod antenna (FFO)

with CODE (C50) smart radio 10 with CODE (C57) smart radio 9

with CODE (516) RADIO WITH USB INTERFACE

with CODE (527) High-Line radio

with CODE (P02) car2go

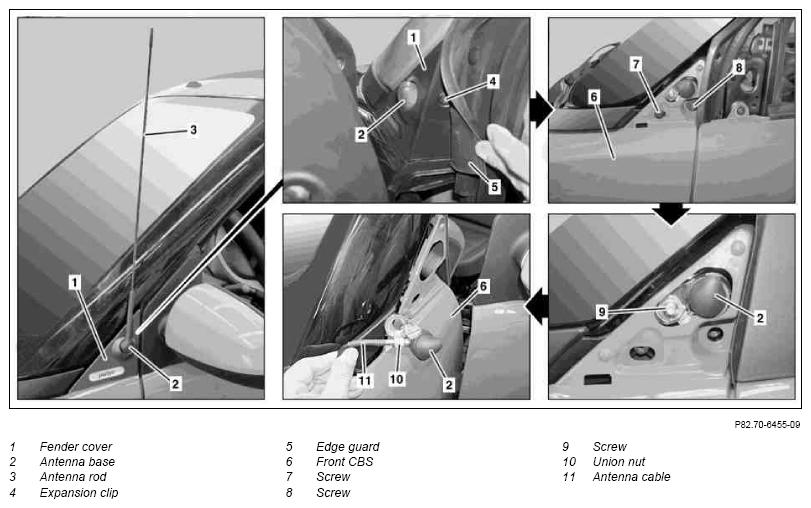

Fig 1: Identifying Antenna Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove antenna rod (3)
2	Open left door, press edge guard (5) to one side in area of fender cover (1) and remove expansion clip (4)
3	Push fender cover (1) slightly upwards and remove
4	Remove bolts (7, 8)	Check whether guide sleeve of bolt (8) is properly seated.
5	Remove bolt (9) from antenna base (2)
6	Slightly press CBS front (6) to one side and carefully take antenna base (2) up and out until the antenna cable (11) is accessible	Pay attention to routing of antenna cable (11).
7	Unscrew union nut (10) of antenna cable (11) and remove antenna base (2)	Screw on union nut (10) finger-tight and continue turning a quarter turn using suitable pliers.
8	Install in the reverse order
