Remove/install wiper system - AR82.30-P-6400MCU

MODEL 451.3/4

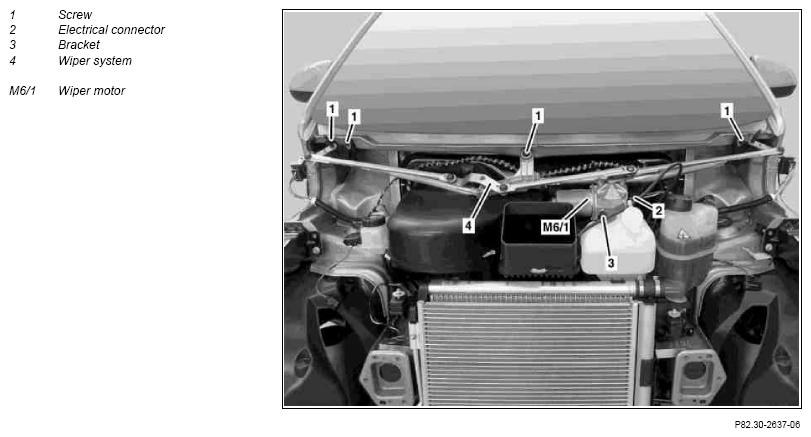

Fig 1: Identifying Wiper System Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove front module		AR62.30-P-1575MCU
2	Disconnect electrical connector (2) from wiper motor (M6/1)
3	Remove bracket (3) with rubber grommet from wiper motor (M6/1)
4	Remove bolts (1) starting from the right and take off wiper system (4)	Tighten bolts (1) starting from the left.
			*BA82.30-P-1007-01F
5	Install in the reverse order
6	Perform function test of wiper system (4) with wiper motor (M6/1)

WINDSHIELD WIPER

Number	Designation		Model 451.3	Model 451.4
BA82.30-P-1007-01F	Bolt, wiper linkage to body	Nm	10	10
