Drain transmission oil, refill - AR26.00-P-0200MEX
MODEL 451.390/392/490/492 with ENGINE 780.993
| Risk of death when touching components on vehicles with high-voltage on-board electrical system | Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems. | AS54.00-Z-0001-01A | |
| Note on the voltage on-board electrical system | AH54.00-P-0010-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Lowering | |||
| 1 | Remove transmitter key and mains plug | ||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 2 | Raise vehicle with vehicle lift | ||

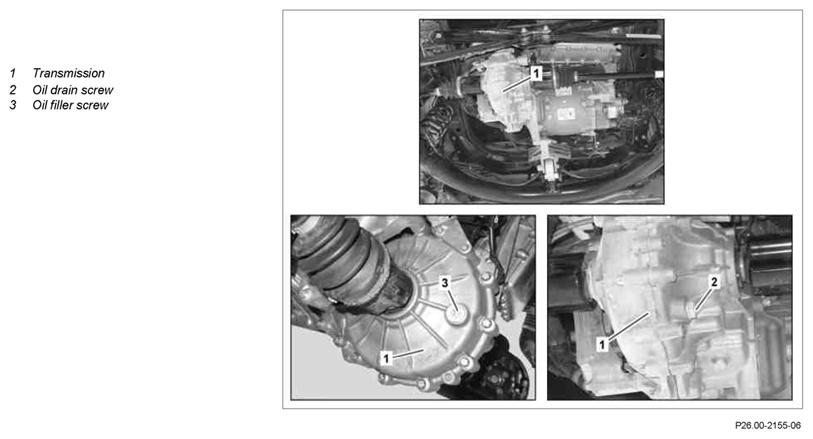

| 3 | Clean area surrounding oil filler screw (3) on transmission (1) and remove oil filler screw (3) | ||
| 4 | Remove oil drain screw (2) from transmission (1) and drain transmission oil | ||
| Filling | |||
| 5 | Screw in oil drain screw (2) securely into transmission (1) | *BA26.00-P-1004-01E | |
| 6 | Pour in oil until it reaches lower edge of filler opening | ||
| Gear oils (Sheet 235.72) | Automatic shift gear oil, Model 451 and 454 (Specification 235.72). See https://bevo.mercedes-benz.com/index.php?language_id=1 | ||
| 7 | Tighten oil filler screw (3) on transmission (1) | *BA26.00-P-1004-01E | |
| 8 | Lower vehicle with vehicle lift |
MANUAL TRANSMISSION COMPLETE
| Number | Designation | ENGINE 780.993 | |
|---|---|---|---|
| BA26.00-P-1004-01E | Screw plug to transmission housing | Nm | 43 |
