Partially replace side longitudinal member reinforcement - AR63.30-P-0818MCC
MODEL 451.3/4

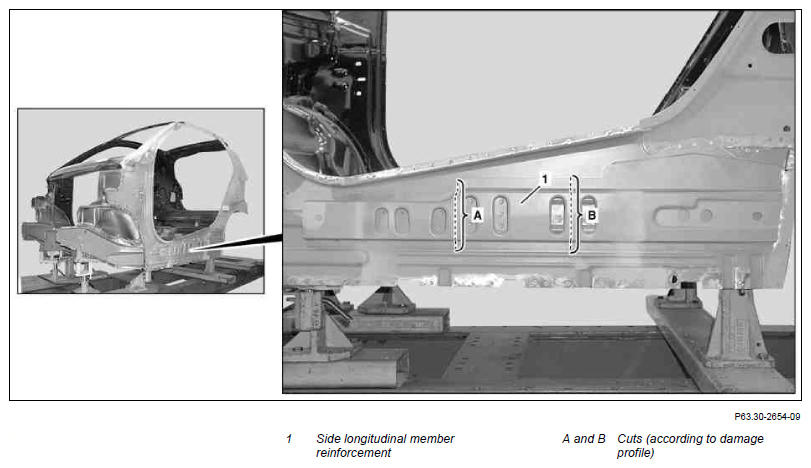

Shown on model 451.3
| Removing | |||
| Risk of death caused by high voltage used for electric welding. Risk of explosion caused by welding in the area of highly inflammable materials. Risk of injury caused by welding splatter and UV light while welding. Risk of poisoning caused by inhaling welding fumes. | Use insulating mats. Wear protective clothing, safety glasses and protective mask. Remove highly inflammable materials from the hazard area. Use air extractor system. | AS00.00-Z-0007-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Measures for preventing damage to vehicles or components when performing electric welding work | AH00.00-P-0005-01FF | ||
| Notes on performing repair, body work and welding on vehicles with airbags and ETR units | AH91.00-P-0002-01SM | ||
| General information on riveting | AH60.00-P-0003-01MCC | ||
| Notes on replacing body parts | AH60.00-P-0027-01FF | ||
| General information on body repair | AH60.00-P-0001-01FF | ||
| The following workshop equipment and tools are required for repair: | Round wire brush Pneumatic eccentric sander Cutting grinder Cartridge gun Drill Angle grinder Wet/dry vacuum cleaner |
||
| Hole punching pliers, Ø 6 mm | Punching pliers Spot weld milling cutter Vise grip pliers MIG MAG gas welder (steel, brazing, aluminum) Inverter spot welder |
||
| Tarp (fire-resistant) | Welding protective blanket |
||
| 1 | Remove detachable parts in the repair area | ||
| 2 | Cover all detachable parts remaining in vehicle (area to be repaired) | ||
| 3 | Partially remove side wall paneling | in case of model 451.3 | AR63.10-P-0115MCC |
| In model 451.4 | AR63.10-P-0115MCO | ||
| 4 | Partially remove side wall reinforcement | AR63.20-P-0862MCC | |
| 5 | Remove B-pillar reinforcement | in case of model 451.3 | AR63.20-P-1351MCC |
| In model 451.4 | AR63.20-P-1351MCO | ||
| 6 | Remove rear lamp insert | in case of model 451.3 | AR64.20-P-1061MCC |
| In model 451.4 | AR64.20-P-1061MCO | ||
| 7 | Remove rear wheel well | AR63.10-P-0661MCC | |
| 8 | Remove lower A-pillar reinforcement | in case of model 451.3 | AR63.20-P-1114MCC |
| In model 451.4 | AR63.20-P-1114MCO | ||
| 9 | Partially remove side longitudinal member reinforcement (1) | AR63.30-P-0818-01MCC | |
| 10 | Partially prepare side longitudinal member reinforcement connecting points (1) on body | AR63.30-P-0818-04MCC | |
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| 11 | Partially prepare side longitudinal member reinforcement (1) for installation | AR63.30-P-0818-02MCC | |
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| Install | |||
| 12 | Partially install side longitudinal member reinforcement (1) and weld in | AR63.30-P-0818-03MCC | |
| 13 | Install lower A-pillar reinforcement | in case of model 451.3 | AR63.20-P-1114MCC |
| In model 451.4 | AR63.20-P-1114MCO | ||
| 14 | Install rear wheel well | AR63.10-P-0661MCC | |
| 15 | Install rear lamp insert | in case of model 451.3 | AR64.20-P-1061MCC |
| In model 451.4 | AR64.20-P-1061MCO | ||
| 16 | Install B-pillar reinforcement | in case of model 451.3 | AR63.20-P-1351MCC |
| In model 451.4 | AR63.20-P-1351MCO | ||
| 17 | Partially install side wall reinforcement | AR63.20-P-0862MCC | |
| 18 | Partially install side wall paneling | in case of model 451.3 | AR63.10-P-0115MCC |
| In model 451.4 | AR63.10-P-0115MCO | ||
| 19 | Clean welds and sheet metal flange with wire brush and clean areas to be repaired | ||
| 20 | Prime repair area using primer filler | ||
| 21 | Supply standard seam seals with body sealant | AR97.10-P-4000MCC | |
| Sealant | *BR00.45-Z-1003-01A | ||
| 22 | Supplement standard underbody protection with permanent underbody sealant | Underfloor protection | *BR00.45-Z-1001-05A |
| 23 | Paint repair area adjacent surfaces | ||
| Notes on paintwork repairs | AH98.00-P-9408-02MCC | ||
| 24 | Apply additional cavity preservation | AR97.20-P-1500FF | |
| Teroson protective wax | *BR00.45-Z-1008-05A | ||
| 25 | Reinstall all detachable parts removed |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | White sealing compound, 310 ml, DBL 6069.20 | A 001 989 63 20 |
| BR00.45-Z-1001-05A | Underfloor protection 800 ml | A 001 986 46 10 |
| BR00.45-Z-1008-05A | Teroson protective wax | Henkel Loctite |
| Art. no.: 122.73Q | ||
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |
