Remove/install rear soft top drive wiring harness - AR77.39-P-1010MCO
MODEL 451.4
Left side of vehicle
| Notes on soft tops | AH77.30-P-0001-01MCO | ||
| Remove/install | |||

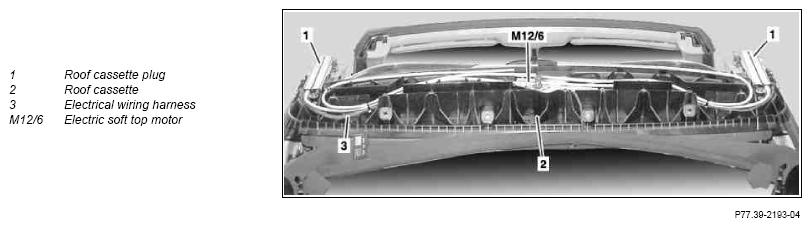

| 1 | Remove roof cassette locks (1) | AR77.30-P-1110MCO | |
| 2 | Remove electric soft top motor (M12/6) | AR77.39-P-4000MCO | |
| 3 | Guide electric wiring harness (3) out of roof cassette (2) | ||

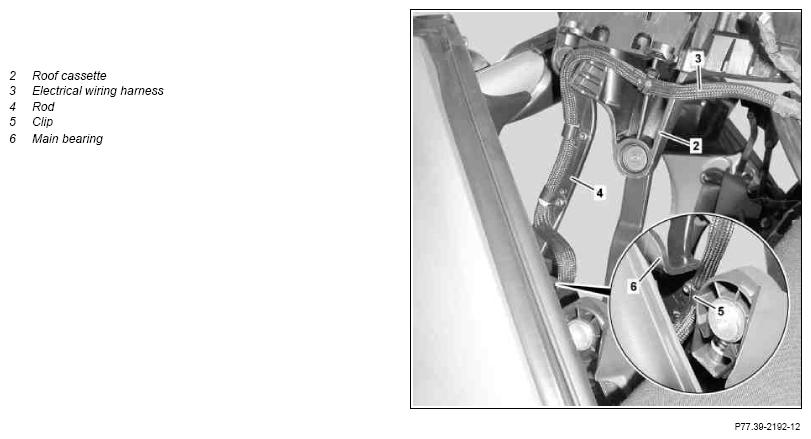

| 4 | Remove electric wiring harness (3) on roof cassette (2) and steering wheel (4) | ||
| 5 | Remove clamp (5) from main bearing (6) | ||
| 6 | Remove left soft top drive (M12/7) | AR77.39-P-4010MCO | |

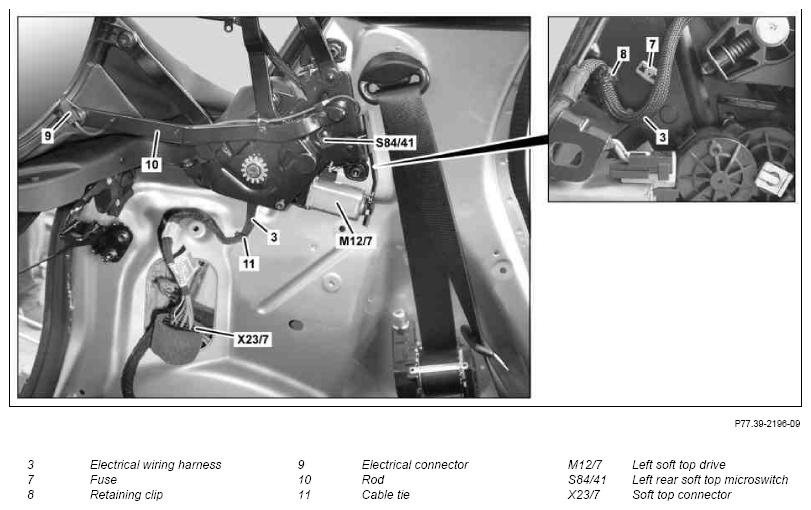

| 7 | Disconnect electrical connector (9) and remove electric wiring harness (3) from steering wheel (10) | ||
| 8 | Guide soft top connector (X23/7) out of B-pillar, disconnect and open cable tie (11) | ||
| 9 | Remove retainer (7) from retaining bolts on left rear soft top microswitch (S84/41) using suitable tool and remove left rear soft top microswitch (S84/41) | Do not damage retaining bolts. Otherwise the electrical wiring harness (3) must be replaced. |
|
| 10 | Remove retaining clip (8) from main bearing (6) and remove electric wiring harness (3) | Route electrical wiring harness (3) such that it cannot be damaged by chafing or crushing. Otherwise the electrical wiring harness (3) must be replaced. |
|
| 11 | Install in the reverse order | ||
| 12 | Perform function test |
