Check outside of vehicle in visible area for signs of damage - AP60.00-P-0050P

MODEL 203, 209.3

Shown on model 212.0

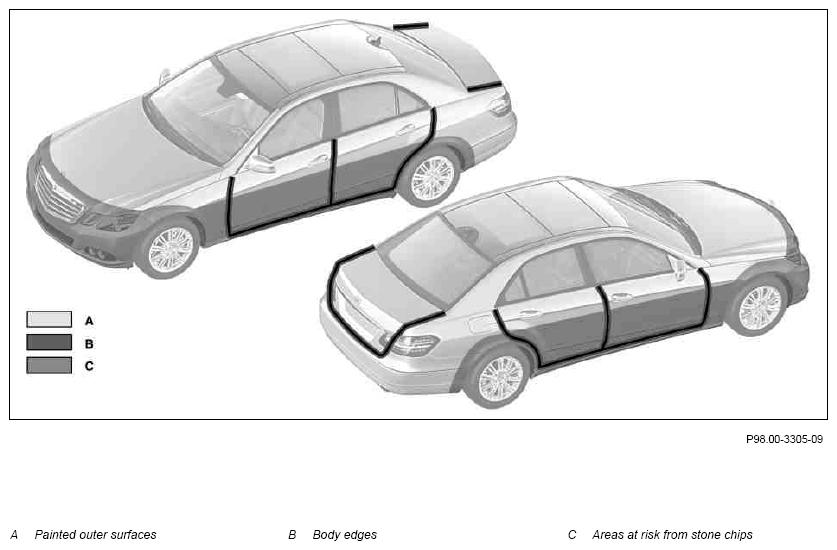

Fig 1: Identifying Vehicle Visible Damaged Area (Outside) - Shown On Model 212.0

Courtesy of MERCEDES-BENZ USA

	Check
1	Check vehicle body and detachable parts for damage and completeness	Dents/deformation Component missing Cracks/scratches Other damage If there are problems: ↓ Rectify the damage, subject to separate repair order, if necessary.
2	Check vehicle paintwork for damage and check vehicle body for corrosion
	Damage and stress caused to paintwork by external influences		AH98.00-P-8070-02A
		The main complaints are in the areas of the body edges (B) and areas (C) subject to stone chippings. Damage to the vehicle paintwork are, e.g.: Stone chipping Scratch Environmental influence Paint peeling off If there are problems: ↓ Proceed in accordance with the country-specific regulations for mobility and body shell complaints subject to separate repair order.
		MODEL 203.0/2	OF98.00-P-3000-01EA
		MODEL 203.7	OF98.00-P-3000-01EB
		MODEL 209.3	OF98.00-P-3000-01F
3	Check exterior lights glazing for damage	Water entry Reflector not functioning Component missing Corrosion Cracks/scratches Other damage If there are problems: ↓ Rectify the damage, subject to separate repair order, if necessary.
