Check outside of vehicle in visible area for signs of damage - AP60.00-P-0050NK

MODEL 117, 156, 176, 246

Show on model 212.0

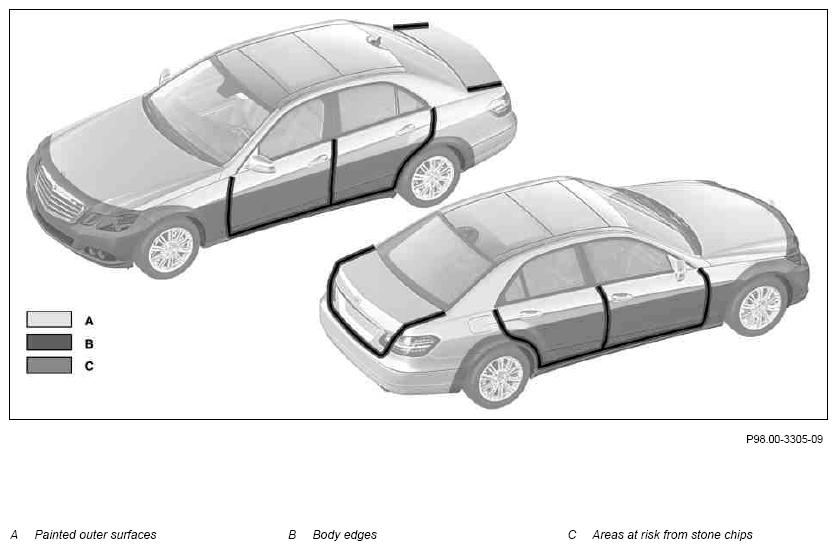

Fig 1: Identifying Vehicle Visible Damaged Area (Outside) - Shown On Model 212.0

Courtesy of MERCEDES-BENZ USA

	Damage and stress caused to paintwork by external influences		AH98.00-P-8070-02A
	Check
1	Check vehicle body and detachable parts for damage and completeness	Dent/deformation, Component missing, Crack/scratch, Other damage. If corrosion is detected: ↓ proceed in accordance with the country-specific regulations for mobility and body shell complaints. If there are problems: ↓ If necessary, rectify the problem, subject to separate repair order.
2	Check vehicle paintwork for damage and check vehicle body for corrosion	The main complaints are in the areas of the body edges (B) and areas (C) subject to stone chippings. Damage to the vehicle paintwork are, e.g.: Stone chipping, Scratch, Environmental influences, Paint peeling off. If there are problems: ↓ Proceed in accordance with the country-specific regulations for mobility and body shell complaints subject to separate repair order.
		MODEL 117.3	OF98.00-P-3000-01EC
		MODEL 117.9	OF98.00-P-3000-01HA
		MODEL 156	OF98.00-P-3000-01U
		MODEL 176	OF98.00-P-3000-01SA
		MODEL 246	OF98.00-P-3000-01QA
3	Check exterior lights glazing for damage	Water entry, Reflector dull, Component missing, corrosion, Crack/scratch, Other damage. If there are problems: ↓ If necessary, rectify the problem, subject to separate repair order.
