Notes on installing rear wall between passenger compartment and trunk - AH64.20-P-1060-01V

MODEL 171, 172

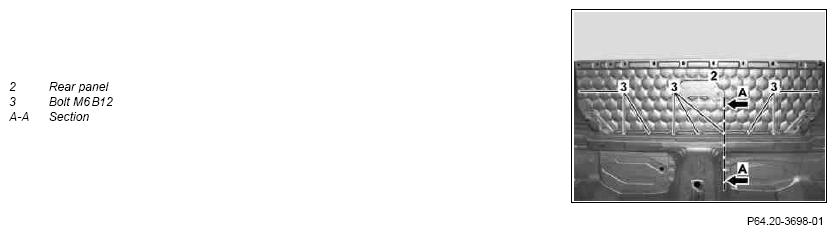

Rear panel between passenger compartment and trunk, shown on model 171

Fig 1: Locating Rear Panel Between Passenger Compartment And Trunk (Shown On Model 171)
G10035883Courtesy of MERCEDES-BENZ USA

Section (A-A) rear panel between passenger compartment and trunk, shown on model 171

Fig 2: Identifying Rear Panel Clearance (Shown On Model 171)
G10035884Courtesy of MERCEDES-BENZ USA

NOTES When installing rear panel (2) use only original screws M6X12 (3) due to spacing (a).

The tank (1) can be damaged if bolts with a shank length longer than 12 mm are used.
