Replace tapping plate on front axle carrier console - AR62.20-P-1315MCC
MODEL 451.3/4
Shown on model 451.4
| Removing | |||
| Risk of death caused by high voltage used for electric welding. Risk of explosion caused by welding in the area of highly inflammable materials. Risk of injury caused by welding splatter and UV light while welding. Risk of poisoning caused by inhaling welding fumes. | Use insulating mats. Wear protective clothing, safety glasses and protective mask. Remove highly inflammable materials from the hazard area. Use air extractor system. | AS00.00-Z-0007-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Measures for preventing damage to vehicles or components when performing electric welding work | AH00.00-P-0005-01FF | ||
| Notes on performing repair, body work and welding on vehicles with airbags and ETR units | AH91.00-P-0002-01SM | ||
| Notes on replacing body parts | AH60.00-P-0027-01FF | ||
| General information on body repair | AH60.00-P-0001-01FF | ||
| The following workshop equipment and tools are required for repair: | Round wire brush Carbide cutter Grinding disk Cartridge gun Drill Wet and dry vacuum cleaner Vise grip pliers MIG-MAG inert gas welder (steel, brazing, aluminum) Welding protective blanket |
||
| 1 | Remove detachable parts in the repair area | ||
| 2 | Cover all detachable parts remaining in vehicle (area to be repaired) | ||

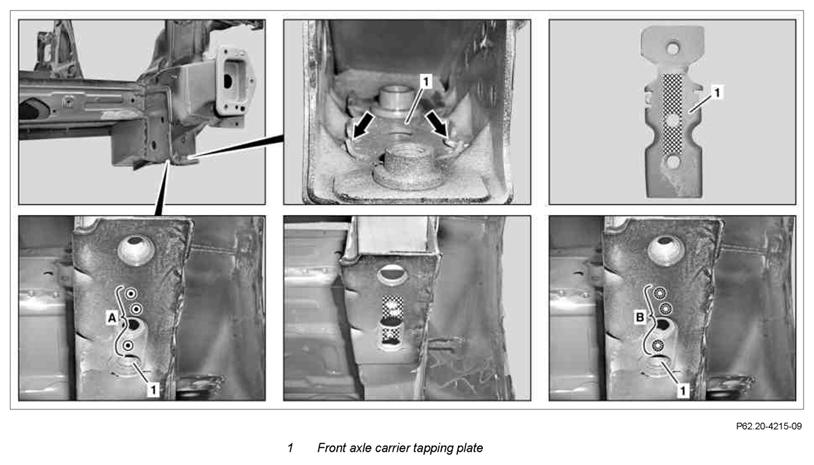

| 3 | Pry out sheet metal lugs (arrows) on front axle carrier tapping plate (1) | ||
| 4 | Expose spot welds on front axle carrier tapping plate (1) and cut out (area A) | ||
| 5 | Remove damaged front axle carrier tapping plate (1) | ||
| 6 | Grind mating surfaces on front axle carrier tapping plate (1) down to bare metal in cross-hatched areas. | ||
| 7 | Grind front axle carrier tapping plate (1) down to bare metal in shaded areas | ||
| Install | |||
| 8 | Fit front axle carrier tapping plate (1) and fasten with vise grip pliers | ||
| 9 | Front axle carrier tapping plate (1) |
||
| 10 | Level spot welds on front axle carrier tapping plate (1) if required | ||
| 11 | Clean area to be repaired with wire brush and then prime | ||
| 12 | Supplement standard seals with body sealant | Sealant | *BR00.45-Z-1003-01A |
| 13 | Paint repair area adjacent surfaces | ||
| Notes on paintwork repairs | AH98.00-P-9408-02MCC | ||
| 14 | Apply additional cavity preservation | AR97.20-P-1500FF | |
| Teroson protective wax Art. no.: 122.73Q |
*BR00.45-Z-1008-05A | ||
| 15 | Reinstall all detachable parts removed |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | White sealing compound, 310 ml, DBL 6069.20 | A 001 989 63 20 |
| BR00.45-Z-1008-05A | Teroson protective wax Art. no.: 122.73Q |
Henkel Loctite |
