Check vehicle underside in visible area for signs of damage, leaks and corrosion - AP60.00-P-0051S

MODEL 451, 453

Shown on MODEL 453.0

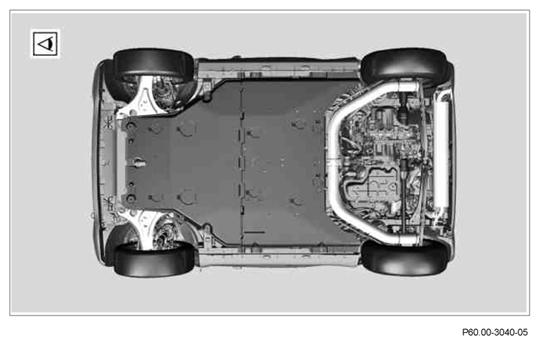

Fig 1: Checking Vehicle Underside In Visible Area For Signs Of Damage, Leaks And Corrosion

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on evaluating leakages		AH00.00-N-0011-01A
	Preparatory activity
1	Lift vehicle on vehicle lift
	Check
2	Check visible components, lines and hoses on underfloor for damage, routing and leakage	Steering, Spring elements, Shock absorber, Rear axle shaft boots, Underfloor paneling, Heat shields, Exhaust system, Brake system, Fuel system, Manual transmission, Clutch operating mechanism. If there are problems: ↓ Rectify problem subject to separate repair order.
3	Check visible components and body panels for corrosion	Wheel well body panels Front axle carrier, Rear axle carrier, Chassis steering arms, Underfloor body panels, Body reinforcements. If corrosion is detected: ↓ proceed in accordance with the country-specific regulations for mobility and body shell complaints.
4	Check vehicle underside for evidence of driving over obstacles or damage caused by contact with the vehicle underside	If driving over obstacles or damage caused by contact with the vehicle underside is suspected: ↓ Check steering for mechanical damages. If the steering shows signs of mechanical damage: ↓ Subject to separate repair order, replace steering for safety reasons.
	Finishing activity
5	Lower vehicle with lifting platform
