Lubricate hinges and locks of doors and flaps - AP72.00-P-7223MCC
MODEL 451.3/4
Shown on model 451.3
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |

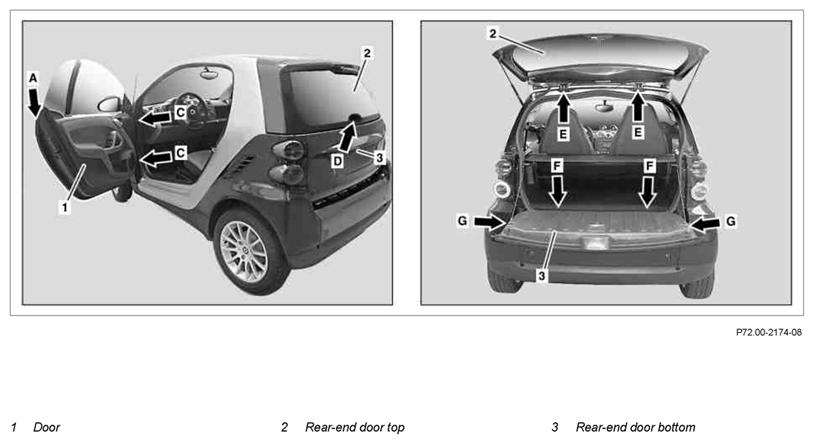

| 1 | Lubricate door hinges (arrows C) for left and right door (1) | Multipurpose oil | BR00.45-Z-1093-06A |
| 2 | Lubricate hinges (arrows E) at top of rear-end door (2) | Model 451.3 | |
| Multipurpose oil | BR00.45-Z-1093-06A | ||
| 3 | Lubricate hinges (arrows F) at bottom of rear-end door (3) | Multipurpose oil | BR00.45-Z-1093-06A |
| 4 | Lubricate roller detents (arrows C at bottom) of door hinges on left and right door (1) | Special grease lubricant | *BR00.45-Z-1085-06A |
| 5 | Remove cover on the lock cylinder (arrow A) of the left door (1) and lubricate lock cylinder | Lock cylinder grease spray, 50 ml | *BR00.45-Z-1012-06A |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1012-06A | Lock cylinder grease spray, 50 ml | A 002 989 06 51 |
| BR00.45-Z-1085-06A | Special grease lubricant | A 000 989 38 60 |
| BR00.45-Z-1093-06A | Multipurpose oil | A 000 989 84 01 |
