Remove/install soft top roof cassette - AR77.30-P-1103MCO

MODEL 451.4

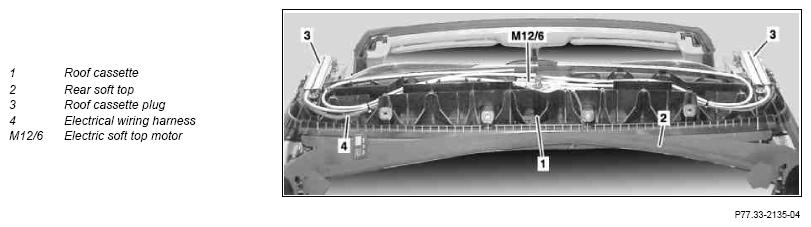

Fig 1: Identifying Soft Top Roof Cassette Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

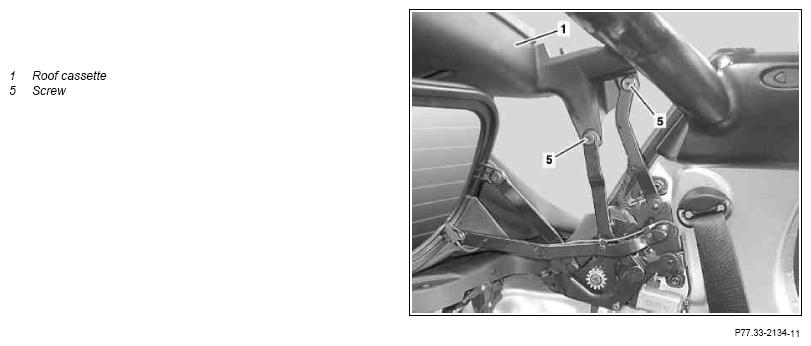

Fig 2: Identifying Soft Top Roof Cassette Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

Shown on left side of vehicle

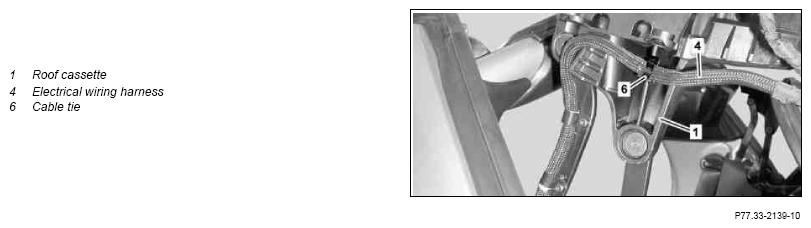

Fig 3: Identifying Soft Top Roof Cassette Remove/Install Components - Shown On Left Side Of Vehicle

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on soft tops		AH77.30-P-0001-01MCO
1	Remove roof cassette locks (3)		AR77.30-P-1110MCO
2	Remove electric soft top motor (M12/6)		AR77.39-P-4000MCO
3	Cut cable tie (6)
4	Guide electric wiring harness (4) out of roof cassette (1)	Ensure that electrical wiring harness (4) is routed without chafing and tension.
5	Pull retaining tap on rear soft top (2) out of roof cassette (1)
6	Unscrew bolts (5) on left and right of roof cassette (1) and remove roof cassette (1)
7	Install in the reverse order
8	Perform function test
