Remove/install soft top bow on soft top - AR77.30-P-1200MCO

MODEL 451.4, 453.4

Shown on left side of vehicle on model 451.4

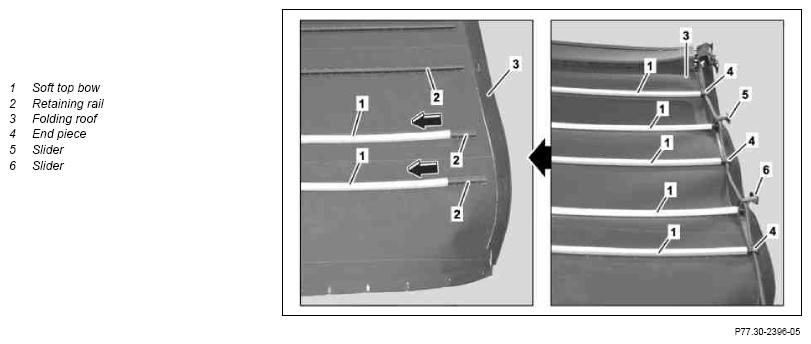

Fig 1: Identifying Soft Top Bow On Soft Top Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Notes on soft tops		AH77.30-P-0001-01MCO
	Remove/install
1	Remove sliding rail (5, 6) and end pieces (4).		AR77.33-P-2000MCO
2	Detach soft top bow (1) from retaining strips (2) on folding roof (3)
3	Install in the reverse order
