Remove, install rear soft top window seal - AR77.35-P-1001MCO

MODEL 451.4

Shown on left side of vehicle

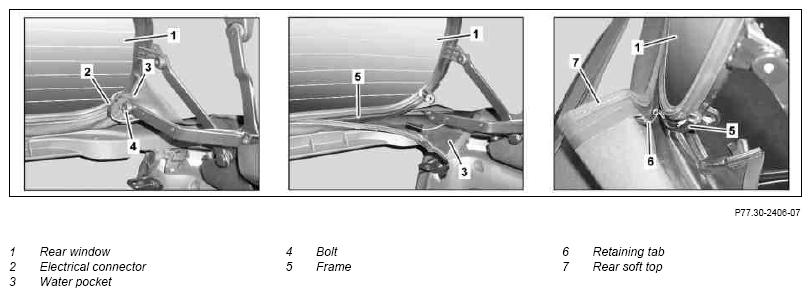

Fig 1: Identifying Rear Soft Top Window Seal Remove/Install Components - Shown On Left Side Of Vehicle (1 Of 2)

Courtesy of MERCEDES-BENZ USA

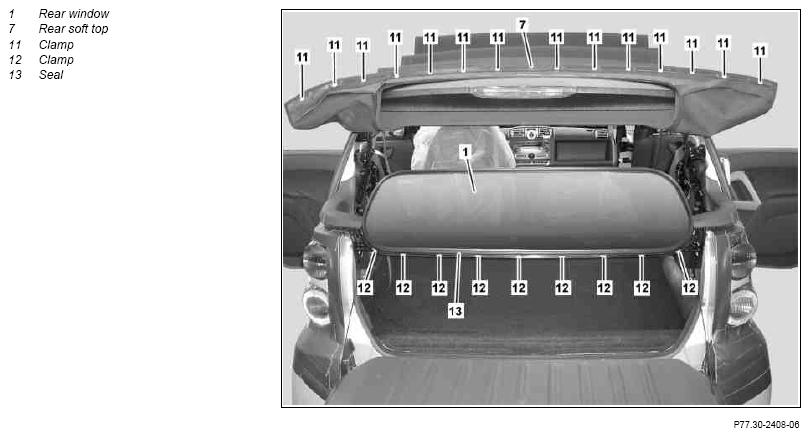

Fig 2: Identifying Rear Soft Top Window Seal Remove/Install Components - Shown On Left Side Of Vehicle (2 Of 2)

Courtesy of MERCEDES-BENZ USA

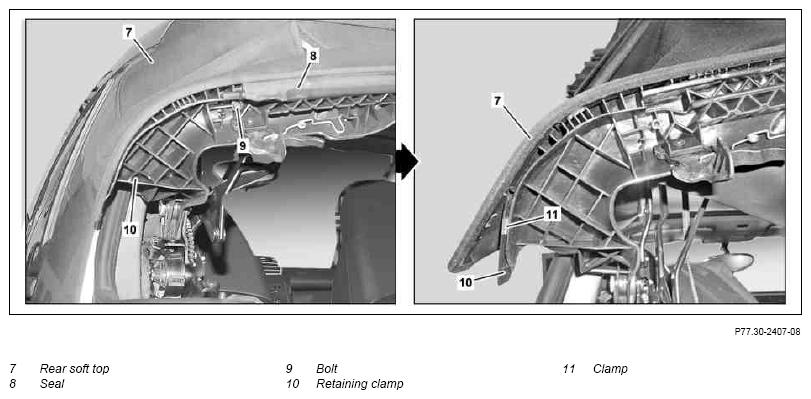

Fig 3: Identifying Rear Soft Top Window Seal Remove/Install Components

Courtesy of MERCEDES-BENZ USA

Shown on removed rear soft top

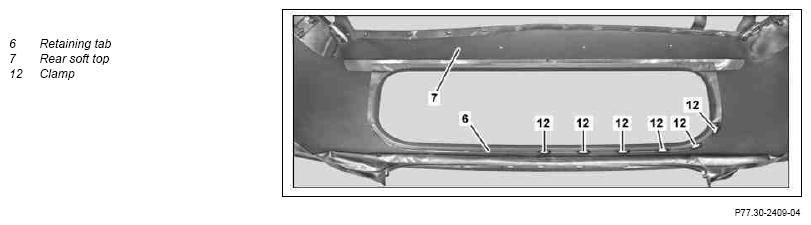

Fig 4: Identifying Rear Soft Top Window Seal Remove/Install Components - Shown On Removed Rear Soft Top

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes for soft tops		AH77.30-P-0001-01MCO
1	Separate electrical connectors (2)
2	Remove bolts (4)
3	Pull retaining tab of water pocket (3) out of frame (5) on rear window (1).
4	Pull retaining tab (6) of rear soft top (7) out of frame (5) on rear window (1).
5	Remove clips (12) remaining in frame (5) with suitable plastic wedge.	Install clips (12) on retaining lug (6) on rear soft top (7).
6	Fold up retaining clip (10), unscrew bolts (9) and pull seal (8) out of retaining clip (10).
7	Unhook rear soft top (7) from retaining clip (10) from outside toward inside and fold up.
8	Remove clips (10) remaining in retaining clips (11) with suitable plastic wedge.	Attach clips (11) on hooking lug on rear soft top (7).
9	Pull seal (13) out of frame (5) on rear window (1).	The ends of the seal (13) should make contact with one another at bottom at the center of the frame (5).
10	Install in the reverse order
11	Perform a function test
