Clean soft top guide - AP77.30-P-7734SM

MODEL 450.4 (except 450.418) MODEL 451.4

Shown on model 450.4

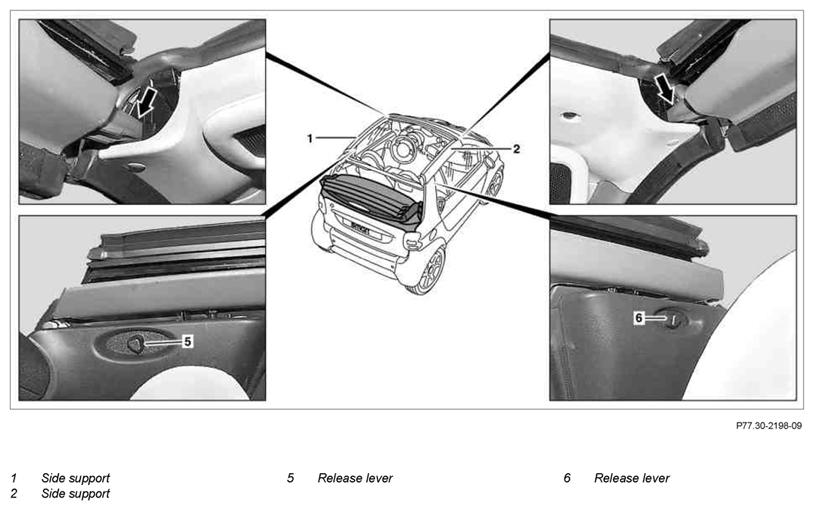

Fig 1: Cleaning Soft Top Guide - Shown On Model 450.4 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

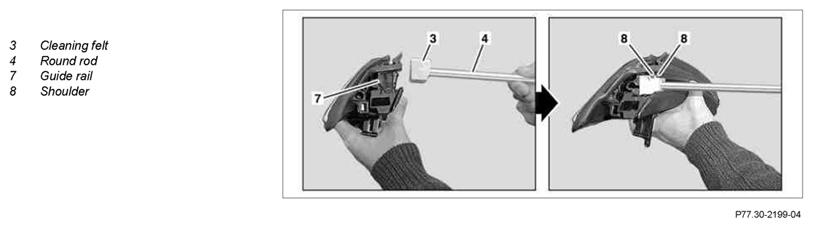

Fig 2: Cleaning Soft Top Guide - Shown On Model 450.4 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Removing
	Notes on soft tops	Model 450.4	AH77.30-P-0001-01SM
		Model 451.	AH77.30-P-0001-01MCO
1	Completely open soft top
2	Remove side support (1) and side support (2)	Loosen side supports (1, 2) by operating the release levers (5, 6) twice on the B-pillar lock.
	Clean
3	Prepare cleaning felt (3)	Mount cleaning felt (3) on a round rod (4).
4	Place cleaning felt (3) up against the side support (1, 2)	Insert the slots in the cleaning felt (3) over the bars (8) in the guide rail (7). Replacement part number of cleaning felt (3): 001 0144 V001.
5	Clean the guide rail (7)	Draw the cleaning felt (3) evenly through the guide rail (7) until the guide rail (7) is lubricated properly and evenly. Remove excess oil on the side support (1, 2) due to a risk of contamination.
6	Clean strut bearing
7	Remove cleaning felt (3)
	Install
8	Install side support (1, 2) and close cover	Insert side supports (1, 2) in the A-pillar strut bearing (arrow) and lock twice in the B-pillar lock.
